Superlok SR 10M 8
Superlok SR 10M 8
SR 10M 8

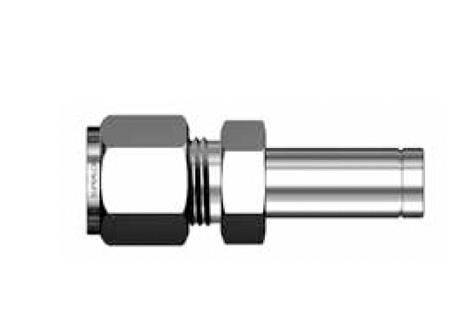

SR 10 mm Tube Outside Diameter DX 1/2 in. Tube Stub Reducer
3D Preview
CAD Download
Downloads
Data Sheet for SR Reducers
CAD File Download
Request A Quote
Call Us (805) 658-2044
Specifications
Part Number
SR 10M-8
Brand
Superlok®
Material
316 Stainless Steel
Description
SR 10 mm Tube Outside Diameter DX 1/2 in. Tube Stub Reducer
Inch/Metric
Metric

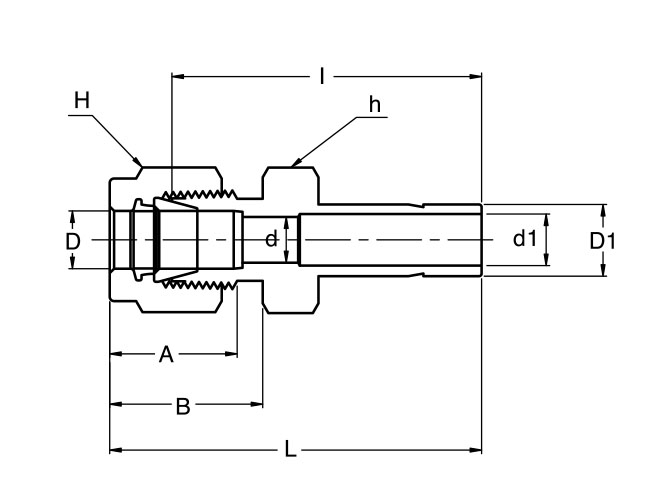

Dimensions
Dimension A
17.2 mm
Dimension B
19.5 mm
Dimension I
42.2 mm
Dimension L
49.8 mm
Dimension d [Min]
7.9 mm
Dimension d1 [Min]
9.4 mm
Tube Outside Diameter D
in 10 mm
Tube Outside Diameter D1
1/2 in
Width Across Flats H
in 19 mm
Width Across Flats h
in 18 mm
