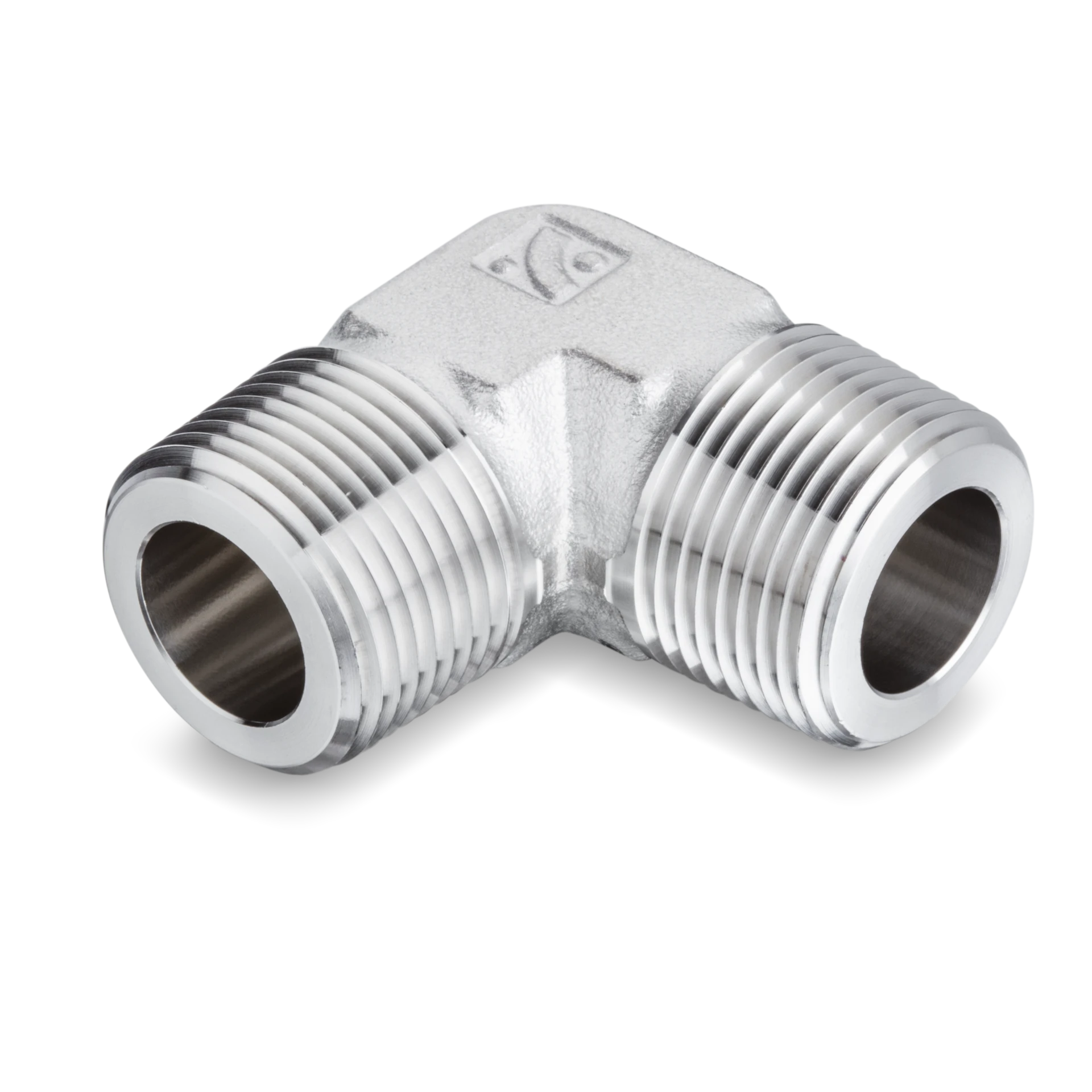

IME Male Elbows

Price range: $11.14 through $84.23

Add any item to your quote and we’ll get back to you with a price. Discounts apply for larger quantities, so the more you need, the better the rate. We’ll always get you the best possible price based on your volume.

See individual part details below

Access our complete line of IME Male Elbow options for directional flow control. Our selection ensures secure threaded connections for your fluid system. Browse below to instantly request quotes or purchase the reducing street elbows you need.

Looking for Swagelok® alternatives? Enter a part number in our search to find compatible alternatives.

SKU: 18332 Category: Elbow Pipe Fittings

Click here for more info

Specifications

End Type	National Pipe Taper (NPT)
Inch/Metric	Inch
Pressure [Max]	=--DELETED=psi
Superlok Part Type	Male Elbows

Available Sizes

IME-2N IME Male Elbows

IME 1/8 in. Male National Pipe Taper (MNPT) Male Elbow

$11.14

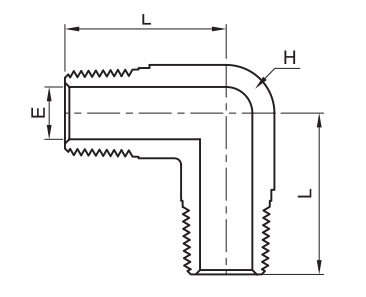

Dimension E	4.8mm
Dimension H	12.7mm
Dimension L	19.1mm

End Size	44204
End Type	National Pipe Taper (NPT)
Inch/Metric	Inch
Pressure Rating (Brass)	344bar, 5000psig
Pressure [Max]	689bar, 10000psig

Swagelok®	SS-2-ME

IME-4N IME Male Elbows

IME 1/4 in. Male National Pipe Taper (MNPT) Male Elbow

$11.77

Dimension E	7.1mm
Dimension H	12.7mm
Dimension L	24.5mm

End Size	44200
End Type	National Pipe Taper (NPT)
Inch/Metric	Inch
Pressure Rating (Brass)	275bar, 4000psig
Pressure [Max]	551bar, 8000psig

Swagelok®	SS-4-ME

IME-6N IME Male Elbows

IME 3/8 in. Male National Pipe Taper (MNPT) Male Elbow

$17.19

Dimension E	9.6mm
Dimension H	17.5mm
Dimension L	26.9mm

End Size	44263
End Type	National Pipe Taper (NPT)
Inch/Metric	Inch
Pressure Rating (Brass)	268bar, 3900psig
Pressure [Max]	537bar, 7800psig

Swagelok®	SS-6-ME

IME-8N IME Male Elbows

IME 1/2 in. Male National Pipe Taper (MNPT) Male Elbow

$28.12

Dimension E	11.9mm
Dimension H	20.6mm
Dimension L	33.2mm

End Size	44198
End Type	National Pipe Taper (NPT)
Inch/Metric	Inch
Pressure Rating (Brass)	261bar, 3800psig
Pressure [Max]	530bar, 7700psig

Swagelok®	SS-8-ME

IME-12N IME Male Elbows

IME 3/4 in. Male National Pipe Taper (MNPT) Male Elbow

$51.24

Dimension E	15.7mm
Dimension H	25.4mm
Dimension L	35.3mm

End Size	44259
End Type	National Pipe Taper (NPT)
Inch/Metric	Inch
Pressure Rating (Brass)	248bar, 3600psig
Pressure [Max]	502bar, 7300psig

Swagelok®	SS-12-ME

IME-16N IME Male Elbows

IME 1 in. Male National Pipe Taper (MNPT) Male Elbow

$84.23

Dimension E	22.4mm
Dimension H	31.8mm
Dimension L	44.5mm
