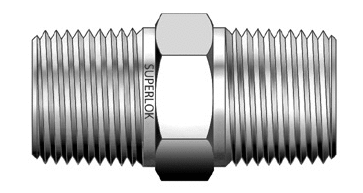

IHN 1/8 in. Male National Pipe Taper (MNPT) Pipe Size Hex Nipple
IHN-2N
IHN 1/8 in. Male National Pipe Taper (MNPT) Pipe Size Hex Nipple
Add any item to your quote and we’ll get back to you with a price. Discounts apply for larger quantities, so the more you need, the better the rate. We’ll always get you the best possible price based on your volume.
Specifications
| (ISO)/(BSP) Pipe Size | mm |
|---|---|
| End Type | Male National Pipe Thread (MNPT) |
| Inch/Metric | Inch |
| Pressure Rating for Brass Nipple | 344bar, 5000psig |
| Pressure [Max] | 689bar, 10000psig |
Dimensions
| Dimension A | 25.6mm |
|---|---|
| Dimension B | mm |
| Dimension C | mm |
| Dimension E | 4.8mm |
| Dimension H | 11.1mm |
Description
(IHN-2N)
Compatibility
This part may be used in place of the following parts from other manufacturers:
| Swagelok® | SS-2-HN |
|---|
