IFT Female Tees
Print Page
IFT-4N
IFT-4N - Image 2
IFT-4N - Image 3

IFT-4N

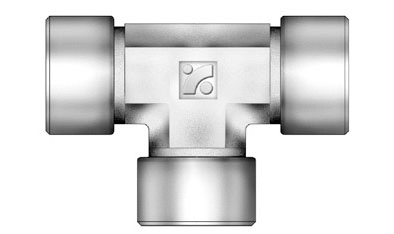

IFT 1/4 in. Female National Pipe Taper (FNPT) Pipe Size Female Tee

Add any item to your quote and we’ll get back to you with a price. Discounts apply for larger quantities, so the more you need, the better the rate. We’ll always get you the best possible price based on your volume.
SKU: IFT-4N Category: Tag:
Click here for more info
Add to quote
Specifications
Inch/Metric Inch
Pressure Rating (Brass) 248bar, 3600psig
Pressure [Max] 496bar, 7200psig
Dimensions
IFT-4N
Dimension A 58.0mm
Dimension E 11.4mm
Dimension H 17.5mm
Dimension L 29.0mm
Description

(IFT-4N)

Stainless Steel Female Pipe Tee – 1/4" FNPT x 1/4" FNPT x 1/4" FNPT | Pipe Size Tee

The IFT-4N is a 1/4" FNPT female tee precision-machined from 316 stainless steel for rugged performance in high-pressure pressure systems, clean piping assemblies, and OEM instrumentation skids. With triple-female NPT ends, this tee offers flexible layout options for precise fluid control and leak-tight integration into threaded systems.

● Material: 316 Stainless Steel (Corrosion-Resistant Alloy)
● Connection Type: 1/4" FNPT x 1/4" FNPT x 1/4" FNPT
● Pressure Rating: 7200 PSIG Max (Steel), 3600 PSIG (Brass)
● Applications: Sanitary process skids, lab gas systems, clean in place instrumentation, valve manifolds, hygienic fluid processors

Compatible with Swagelok-style pipe fittings, the IFT-4N supports both brass and stainless steel configurations and exceeds expectations in environments requiring long-term corrosion resistance and mechanical integrity. Ideal for use with compression fittings, hygienic valves, and CIP-compatible layouts.

This is the go-to female NPT tee when cleanliness, compactness, and pressure resistance are critical.
