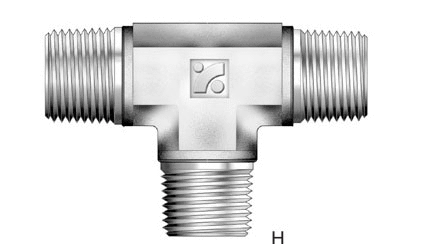

IMT 3/8 in. Male National Pipe Taper (MNPT) Pipe Size Male Tee
IMT-6N
IMT 3/8 in. Male National Pipe Taper (MNPT) Pipe Size Male Tee
Add any item to your quote and we’ll get back to you with a price. Discounts apply for larger quantities, so the more you need, the better the rate. We’ll always get you the best possible price based on your volume.
Specifications
Inch/Metric | Inch |
---|---|
Pressure Rating (Brass) | 268bar, 3900psig |
Pressure [Max] | 537bar, 7800psig |
Dimensions
Dimension A | 53.8mm |
---|---|
Dimension E | 9.6mm |
Dimension H | 17.5mm |
Dimension L | 26.9mm |
Description
(IMT-6N)
Compatibility
This part may be used in place of the following parts from other manufacturers:
Swagelok® | SS-6-MT |
---|
