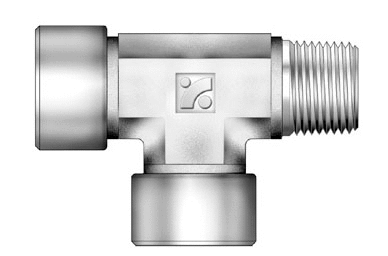

IRT 3/8 in. Female National Pipe Taper (FNPT) x Male National Pipe Taper (MNPT) x Female National Pipe Taper (FNPT) Pipe Size Run Tee
IRT-6N
IRT 3/8 in. Female National Pipe Taper (FNPT) x Male National Pipe Taper (MNPT) x Female National Pipe Taper (FNPT) Pipe Size Run Tee
Add any item to your quote and we’ll get back to you with a price. Discounts apply for larger quantities, so the more you need, the better the rate. We’ll always get you the best possible price based on your volume.
Specifications
| Inch/Metric | Inch |
|---|---|
| Pressure Rating (Brass) | 192bar, 2800psig |
| Pressure [Max] | 385bar, 5600psig |
Dimensions
| Dimension A | 62.7mm |
|---|---|
| Dimension E | 9.6mm |
| Dimension H | 20.6mm |
| Dimension L | 34.5mm |
| Dimension S | 28.2mm |
Description
(IRT-6N)
Compatibility
This part may be used in place of the following parts from other manufacturers:
| Swagelok® | SS-6-ST |
|---|
