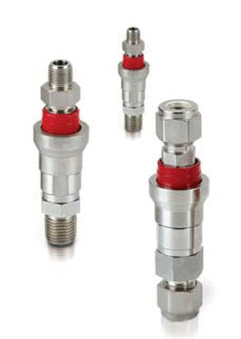

SQC Quick Connect Bodies

Access our SQC quick connect body designs featuring tool-free push-pull operation. Our quick connect body options include both valved and unvalved configurations for minimal fluid loss. Browse below to request quotes for your specific component.

Looking for Swagelok® alternatives? Enter a part number in our search to find compatible alternatives.

SKU: 18766 Category: Quick Connect Bodies

Click here for more info

Specifications

Inch/Metric	Inch
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 400 (204 ºC) Temperature	17.2bar, 250psig
Superlok Part Type	Connect Body

Available Sizes

SQC1B-F2N SQC Quick Connect Bodies

SQC 1/8 in. x 1/8 in. Female National Pipe Taper (FNPT) Quick Connect Body

Dimension B	56.9mm
Dimension H	23.1mm

End Size	44204in
End Type	Female National Pipe Thread (FNPT)
Flow [Max]	4gpm, 15L/min
Inch/Metric	Inch
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 70 (20 ºC) Temperature	206bar, 3000psig
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 400 (204 ºC) Temperature	17.2bar, 250psig
Spillage	0.3cm³

SQC1B-F4N SQC Quick Connect Bodies

SQC 1/4 in. x 1/4 in. Female National Pipe Taper (FNPT) Quick Connect Body

Dimension B	61.5mm
Dimension H	23.1mm

End Size	44200in
End Type	Female National Pipe Thread (FNPT) Pipe Taper (PT)
Flow [Max]	4gpm, 15L/min
Inch/Metric	Inch
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 70 (20 ºC) Temperature	206bar, 3000psig
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 400 (204 ºC) Temperature	17.2bar, 250psig
Spillage	0.3cm³

SQC1B-M2N SQC Quick Connect Bodies

SQC 1/8 in. x 1/8 in. Male National Pipe Taper (MNPT) Quick Connect Body

Dimension B	51.1mm
Dimension H	23.1mm

End Size	44204in
End Type	Male National Pipe Thread (NPT)
Flow [Max]	4gpm, 15L/min
Inch/Metric	Inch
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 70 (20 ºC) Temperature	206bar, 3000psig
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 400 (204 ºC) Temperature	17.2bar, 250psig
Spillage	0.3cm³

SQC1B-M4N SQC Quick Connect Bodies

SQC 1/4 in. x 1/4 in. Male National Pipe Taper (MNPT) Quick Connect Body

Dimension B	56.9mm
Dimension H	23.1mm

End Size	44200in
End Type	Male National Pipe Thread (MNPT) Pipe Taper (PT)
Flow [Max]	4gpm, 15L/min
Inch/Metric	Inch
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 70 (20 ºC) Temperature	206bar, 3000psig
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 400 (204 ºC) Temperature	17.2bar, 250psig
Spillage	0.3cm³

SQC1B-S4 SQC Quick Connect Bodies

SQC 1/4 in. x 1/4 in. Tube Outside Diameter Quick Connect Body

Dimension B	58.4mm
Dimension H	23.1mm

End Size	44200in
End Type	Array
Flow [Max]	4gpm, 15L/min
Inch/Metric	Inch
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 70 (20 ºC) Temperature	206bar, 3000psig
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 400 (204 ºC) Temperature	17.2bar, 250psig
Spillage	0.3cm³

SQC2B-F6N SQC Quick Connect Bodies

SQC 3/8 in. x 3/8 in. Female National Pipe Taper (FNPT) Quick Connect Body

Dimension B	65.3mm
Dimension H	26.2mm

End Size	44263in
End Type	Female National Pipe Thread (FNPT) Pipe Taper (PT)
Flow [Max]	6gpm, 22L/min
Inch/Metric	Inch
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 70 (20 ºC) Temperature	103bar, 1500psig
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 400 (204 ºC) Temperature	17.2bar, 250psig
Spillage	1.0cm³

SQC2B-M4N SQC Quick Connect Bodies

SQC 1/4 in. x 1/4 in. Male National Pipe Taper (MNPT) Quick Connect Body

Dimension B	60.5mm
Dimension H	26.2mm

End Size	44200in
End Type	Male National Pipe Thread (MNPT)
Flow [Max]	6gpm, 22L/min
Inch/Metric	Inch
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 70 (20 ºC) Temperature	103bar, 1500psig
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 400 (204 ºC) Temperature	17.2bar, 250psig
Spillage	1.0cm³

SQC2B-M6N SQC Quick Connect Bodies

SQC 3/8 in. x 3/8 in. Male National Pipe Taper (MNPT) Quick Connect Body

Dimension B	60.5mm
Dimension H	26.2mm

End Size	44263in
End Type	Male National Pipe Thread (MNPT) Pipe Taper (PT)
Flow [Max]	6gpm, 22L/min
Inch/Metric	Inch
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 70 (20 ºC) Temperature	103bar, 1500psig
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 400 (204 ºC) Temperature	17.2bar, 250psig
Spillage	1.0cm³

SQC2B-S6 SQC Quick Connect Bodies

SQC 3/8 in. x 3/8 in. Tube Outside Diameter Quick Connect Body

Dimension B	65.5mm
Dimension H	26.2mm

End Size	44263in
End Type	Array
Flow [Max]	6gpm, 22L/min
Inch/Metric	Inch
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 70 (20 ºC) Temperature	103bar, 1500psig
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 400 (204 ºC) Temperature	17.2bar, 250psig
Spillage	1.0cm³

SQC3B-F8N SQC Quick Connect Bodies

SQC 1/2 in. x 1/2 in. Female National Pipe Taper (FNPT) Quick Connect Body

Dimension B	81.8mm
Dimension H	30.7mm

End Size	44198in
End Type	Female National Pipe Thread (FNPT) Pipe Taper (PT)
Flow [Max]	10gpm, 37L/min
Inch/Metric	Inch
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 70 (20 ºC) Temperature	51.6bar, 750psig
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 400 (204 ºC) Temperature	17.2bar, 250psig
Spillage	3.0cm³

SQC3B-M8N SQC Quick Connect Bodies

SQC 1/2 in. x 1/2 in. Male National Pipe Taper (MNPT) Quick Connect Body

Dimension B	75.4mm
Dimension H	30.7mm

End Size	44198in
End Type	Male National Pipe Thread (MNPT) Pipe Taper (PT)
Flow [Max]	10gpm, 37L/min
Inch/Metric	Inch
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 70 (20 ºC) Temperature	51.6bar, 750psig
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 400 (204 ºC) Temperature	17.2bar, 250psig
Spillage	3.0cm³

SQC3B-S8 SQC Quick Connect Bodies

SQC 1/2 in. x 1/2 in. Tube Outside Diameter Quick Connect Body
