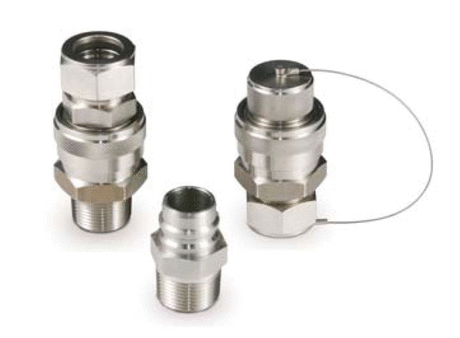

SFQC Full Flow Quick Connect Stems

Access our SFQC quick connect stem series featuring tool-free push-pull operation. These full-flow quick connect stems offer unrestricted flow with multiple connection options. Browse below to request a quote for your specific component.

Looking for Swagelok® alternatives? Enter a part number in our search to find compatible alternatives.

SKU: 18758 Category: Quick Connect Stems

Click here for more info

Specifications

Inch/Metric	Inch
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 70 (20 ºC) Temperature	413bar, 600psig
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 400 (204 ºC) Temperature	6.8bar, 100psig
Pressure Rating Brass with NBR O-Ring at 250 (121 ºC) Temperature	6.8bar, 100psig
Superlok Part Type	Connect Stem

Available Sizes

SFQC2P-F4N SFQC Full Flow Quick Connect Stems

SFQC 1/4 in. x 1/4 in. Female National Pipe Taper (FNPT) Full Flow Quick Connect Stem

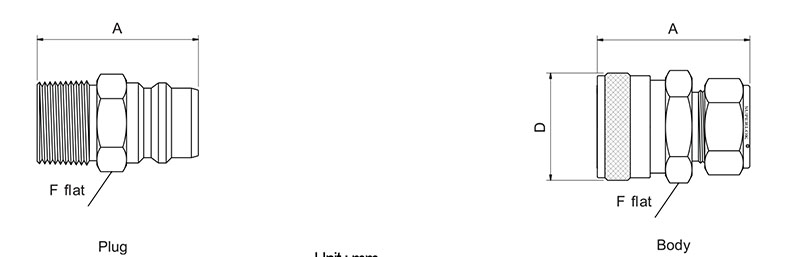

Dimension A	40.6mm
Dimension F	19.1mm

Cv Coefficient	1.7
End Size	44200in
End Type	Female National Pipe Thread (FNPT) Pipe Taper (PT)
Inch/Metric	Inch
Insertion Depth	0.78in, 19.8mm
Orifice [Min]	6.1mm
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 70 (20 ºC) Temperature	413bar, 600psig
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 400 (204 ºC) Temperature	6.8bar, 100psig
Pressure Rating Brass with NBR O-Ring at 250 (121 ºC) Temperature	6.8bar, 100psig
Pressure Rating Brass with Nitrile Butadiene Rubber (NBR) O-Ring at 70 (20 ºC) Temperature	275bar, 4000psig

SFQC2P-M4N SFQC Full Flow Quick Connect Stems

SFQC 1/4 in. x 1/4 in. Male National Pipe Taper (MNPT) Full Flow Quick Connect Stem

Dimension A	40.4mm
Dimension F	14.3mm

Cv Coefficient	1.7
End Size	44200in
End Type	Male National Pipe Thread (MNPT)
Inch/Metric	Inch
Insertion Depth	0.78in, 19.8mm
Orifice [Min]	6.1mm
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 70 (20 ºC) Temperature	413bar, 600psig
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 400 (204 ºC) Temperature	6.8bar, 100psig
Pressure Rating Brass with NBR O-Ring at 250 (121 ºC) Temperature	6.8bar, 100psig
Pressure Rating Brass with Nitrile Butadiene Rubber (NBR) O-Ring at 70 (20 ºC) Temperature	275bar, 4000psig

SFQC2P-S4 SFQC Full Flow Quick Connect Stems

SFQC 1/4 in. x 1/4 in. Tube Outside Diameter Full Flow Quick Connect Stem

Dimension A	45.0mm
Dimension F	14.3mm

Cv Coefficient	2.2
End Size	44200in
End Type	Array
Inch/Metric	Inch
Insertion Depth	0.78in, 19.8mm
Orifice [Min]	4.8mm
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 70 (20 ºC) Temperature	413bar, 600psig
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 400 (204 ºC) Temperature	6.8bar, 100psig
Pressure Rating Brass with NBR O-Ring at 250 (121 ºC) Temperature	6.8bar, 100psig
Pressure Rating Brass with Nitrile Butadiene Rubber (NBR) O-Ring at 70 (20 ºC) Temperature	275bar, 4000psig

SFQC2P-S6 SFQC Full Flow Quick Connect Stems

SFQC 1/4 in. x 3/8 in. Tube Outside Diameter Full Flow Quick Connect Stem

Dimension A	45.0mm
Dimension F	17.5mm

Cv Coefficient	2.8
End Size	44263in
End Type	Array
Inch/Metric	Inch
Insertion Depth	0.78in, 19.8mm
Orifice [Min]	6.1mm
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 70 (20 ºC) Temperature	413bar, 600psig
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 400 (204 ºC) Temperature	6.8bar, 100psig
Pressure Rating Brass with NBR O-Ring at 250 (121 ºC) Temperature	6.8bar, 100psig
Pressure Rating Brass with Nitrile Butadiene Rubber (NBR) O-Ring at 70 (20 ºC) Temperature	275bar, 4000psig

SFQC3P-M6N SFQC Full Flow Quick Connect Stems

SFQC 1/2 in. x 3/8 in. Male National Pipe Taper (MNPT) Full Flow Quick Connect Stem
