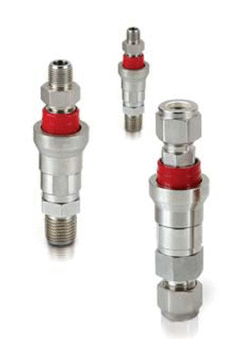

SQC (DESO) Quick Connect Stems

Access our SQC (DESO) quick connect stem series with automatic shutoff capability. These feature tool-free operation and valved configurations for your fluid system. Browse below to request a quote for quick connect stems.

Looking for Swagelok® alternatives? Enter a part number in our search to find compatible alternatives.

SKU: 18781 Category: Quick Connect Stems

Click here for more info

Specifications

Inch/Metric	Inch
Plug Series	DO
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 400 (204 ºC) Temperature	17.2bar, 250psig
Superlok Part Type	Connect Stem

Available Sizes

SQC1P-F2N-DO SQC (DESO) Quick Connect Stems

SQC 1/8 in. x 1/8 in. Female National Pipe Taper (FNPT) Quick Connect Stem (DESO)

Dimension A	52.6mm
Dimension F	15.9mm

Cv Coefficient	0.2
End Size	44204in
End Type	Female National Pipe Thread (NPT)
Flow [Max]	4gpm, 15L/min
Inch/Metric	Inch
Insertion Depth	1.15in, 29.2mm
Plug Series	DO
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 70 (20 ºC) Temperature	206bar, 3000psig
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 400 (204 ºC) Temperature	17.2bar, 250psig
Spillage	0.3cm³

SQC1P-F4N-DO SQC (DESO) Quick Connect Stems

SQC 1/4 in. x 1/4 in. Female National Pipe Taper (FNPT) Quick Connect Stem (DESO)

Dimension A	58.9mm
Dimension F	19.1mm

Cv Coefficient	0.2
End Size	44200in
End Type	Female National Pipe Thread (NPT) Pipe Taper (PT)
Flow [Max]	4gpm, 15L/min
Inch/Metric	Inch
Insertion Depth	1.15in, 29.2mm
Plug Series	DO
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 70 (20 ºC) Temperature	206bar, 3000psig
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 400 (204 ºC) Temperature	17.2bar, 250psig
Spillage	0.3cm³

SQC1P-M2N-DO SQC (DESO) Quick Connect Stems

SQC 1/8 in. x 1/8 in. Male National Pipe Taper (MNPT) Quick Connect Stem (DESO)

Dimension A	54.1mm
Dimension F	15.9mm

Cv Coefficient	0.2
End Size	44204in
End Type	Male National Pipe Thread (NPT)
Flow [Max]	4gpm, 15L/min
Inch/Metric	Inch
Insertion Depth	1.15in, 29.2mm
Plug Series	DO
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 70 (20 ºC) Temperature	206bar, 3000psig
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 400 (204 ºC) Temperature	17.2bar, 250psig
Spillage	0.3cm³

SQC1P-M4N-DO SQC (DESO) Quick Connect Stems

SQC 1/4 in. x 1/4 in. Male National Pipe Taper (MNPT) Quick Connect Stem (DESO)

Dimension A	57.9mm
Dimension F	15.9mm

Cv Coefficient	0.2
End Size	44200in
End Type	Male National Pipe Thread (NPT) Pipe Taper (PT)
Flow [Max]	4gpm, 15L/min
Inch/Metric	Inch
Insertion Depth	1.15in, 29.2mm
Plug Series	DO
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 70 (20 ºC) Temperature	206bar, 3000psig
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 400 (204 ºC) Temperature	17.2bar, 250psig
Spillage	0.3cm³

SQC1P-S4-DO SQC (DESO) Quick Connect Stems

SQC 1/4 in. x 1/4 in. Tube Outside Diameter Quick Connect Stem (DESO)

Dimension A	61.5mm
Dimension F	15.9mm

Cv Coefficient	0.2
End Size	44200in
End Type	Array
Flow [Max]	4gpm, 15L/min
Inch/Metric	Inch
Insertion Depth	1.15in, 29.2mm
Plug Series	DO
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 70 (20 ºC) Temperature	206bar, 3000psig
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 400 (204 ºC) Temperature	17.2bar, 250psig
Spillage	0.3cm³

SQC2P-F6N-DO SQC (DESO) Quick Connect Stems

SQC 3/8 in. x 3/8 in. Female National Pipe Taper (FNPT) Quick Connect Stem (DESO)

Dimension A	62.7mm
Dimension F	22.2mm

Cv Coefficient	0.5
End Size	44263in
End Type	Female National Pipe Thread (NPT) Pipe Taper (PT)
Flow [Max]	6gpm, 22L/min
Inch/Metric	Inch
Insertion Depth	1.30in, 33.0mm
Plug Series	DO
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 70 (20 ºC) Temperature	103bar, 1500psig
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 400 (204 ºC) Temperature	17.2bar, 250psig
Spillage	1.0cm³

SQC2P-M4N-DO SQC (DESO) Quick Connect Stems

SQC 1/4 in. x 1/4 in. Male National Pipe Taper (MNPT) Quick Connect Stem (DESO)

Dimension A	61.9mm
Dimension F	19.1mm

Cv Coefficient	0.5
End Size	44200in
End Type	Male National Pipe Thread (NPT)
Flow [Max]	6gpm, 22L/min
Inch/Metric	Inch
Insertion Depth	1.30in, 33.0mm
Plug Series	DO
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 70 (20 ºC) Temperature	103bar, 1500psig
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 400 (204 ºC) Temperature	17.2bar, 250psig
Spillage	1.0cm³

SQC2P-M6N-DO SQC (DESO) Quick Connect Stems

SQC 3/8 in. x 3/8 in. Male National Pipe Taper (MNPT) Quick Connect Stem (DESO)

Dimension A	62.7mm
Dimension F	19.1mm

Cv Coefficient	0.5
End Size	44263in
End Type	Male National Pipe Thread (NPT) Pipe Taper (PT)
Flow [Max]	6gpm, 22L/min
Inch/Metric	Inch
Insertion Depth	1.30in, 33.0mm
Plug Series	DO
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 70 (20 ºC) Temperature	103bar, 1500psig
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 400 (204 ºC) Temperature	17.2bar, 250psig
Spillage	1.0cm³

SQC2P-S6-DO SQC (DESO) Quick Connect Stems

SQC 3/8 in. x 3/8 in. Tube Outside Diameter Quick Connect Stem (DESO)

Dimension A	67.1mm
Dimension F	19.1mm

Cv Coefficient	0.5
End Size	44263in
End Type	Array
Flow [Max]	6gpm, 22L/min
Inch/Metric	Inch
Insertion Depth	1.30in, 33.0mm
Plug Series	DO
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 70 (20 ºC) Temperature	103bar, 1500psig
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 400 (204 ºC) Temperature	17.2bar, 250psig
Spillage	1.0cm³

SQC2P-S6-DO-BH SQC (DESO) Quick Connect Stems

SQC 3/8 in. x 3/8 in. Tube Outside Diameter Bulkhead Quick Connect Stem (DESO)

Dimension A	67.1mm
Dimension F	19.1mm

Cv Coefficient	0.5
End Size	44263in
End Type	Array
Flow [Max]	6gpm, 22L/min
Inch/Metric	Inch
Insertion Depth	1.30in, 33.0mm
Plug Series	DO
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 70 (20 ºC) Temperature	103bar, 1500psig
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 400 (204 ºC) Temperature	17.2bar, 250psig
Spillage	1.0cm³

SQC3-M8N-DO SQC (DESO) Quick Connect Stems

SQC 1/2 in. x 1/2 in. Male National Pipe Taper (MNPT) Quick Connect Stem (DESO)

Dimension A	77.2mm
Dimension F	23.8mm

Cv Coefficient	1.3
End Size	44198in
End Type	Male National Pipe Thread (NPT) Pipe Taper (PT)
Flow [Max]	10gpm, 37L/min
Inch/Metric	Inch
Insertion Depth	1.68in, 42.7mm
Plug Series	DO
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 70 (20 ºC) Temperature	51.6bar, 750psig
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 400 (204 ºC) Temperature	17.2bar, 250psig
Spillage	3.0cm³

SQC3P-F8N-DO SQC (DESO) Quick Connect Stems

SQC 1/2in. x 1/2 in. Female National Pipe Taper (FNPT) Quick Connect Stem (DESO)

Dimension A	76.7mm
Dimension F	27.0mm

Cv Coefficient	1.3
End Size	44198in
End Type	Female National Pipe Thread (NPT) Pipe Taper (PT)
Flow [Max]	10gpm, 37L/min
Inch/Metric	Inch
Insertion Depth	1.68in, 42.7mm
Plug Series	DO
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 70 (20 ºC) Temperature	51.6bar, 750psig
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 400 (204 ºC) Temperature	17.2bar, 250psig
Spillage	3.0cm³

SQC3P-S8-DO SQC (DESO) Quick Connect Stems

SQC 1/2 in. x 1/2 in. Tube Outside Diameter Quick Connect Stem (DESO)
