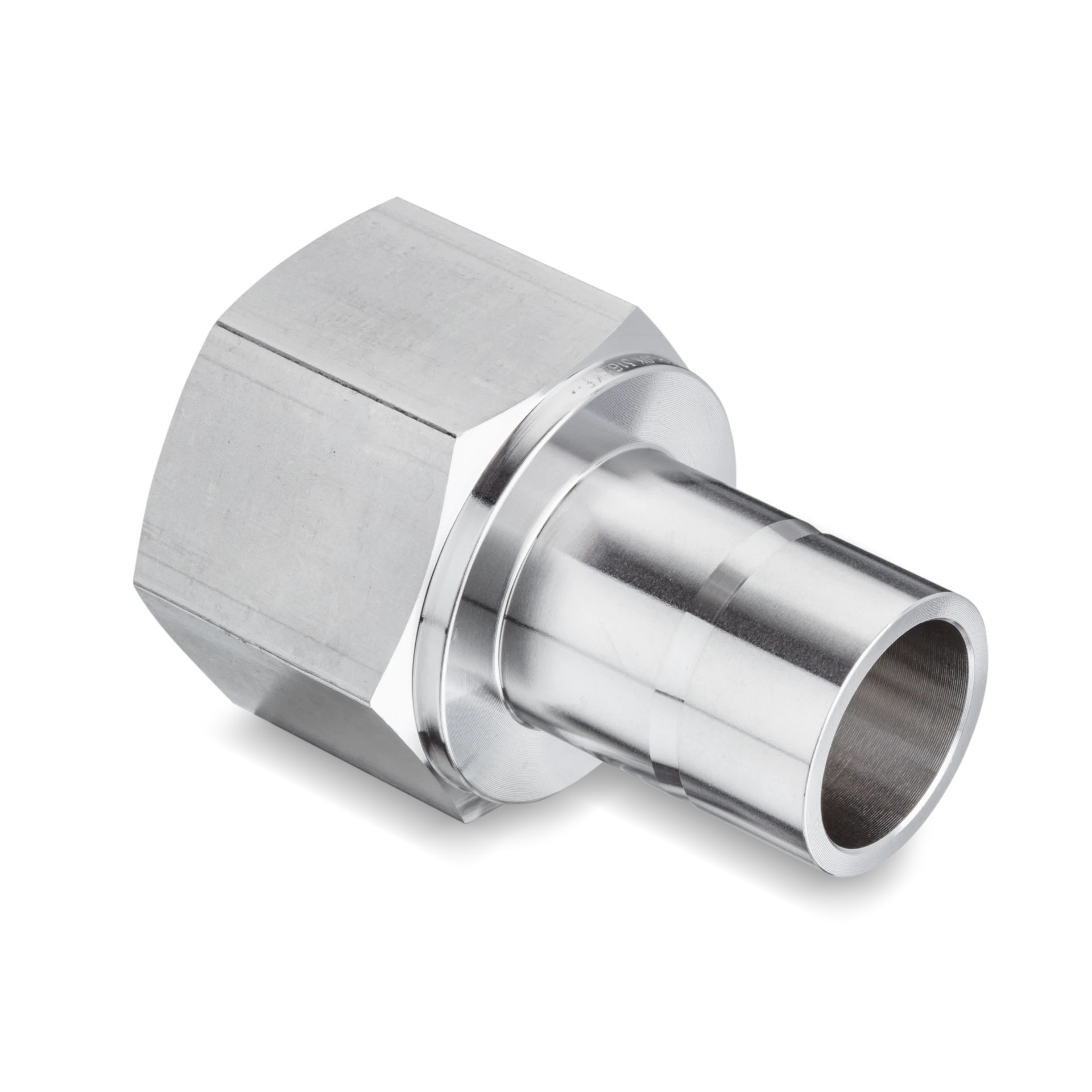

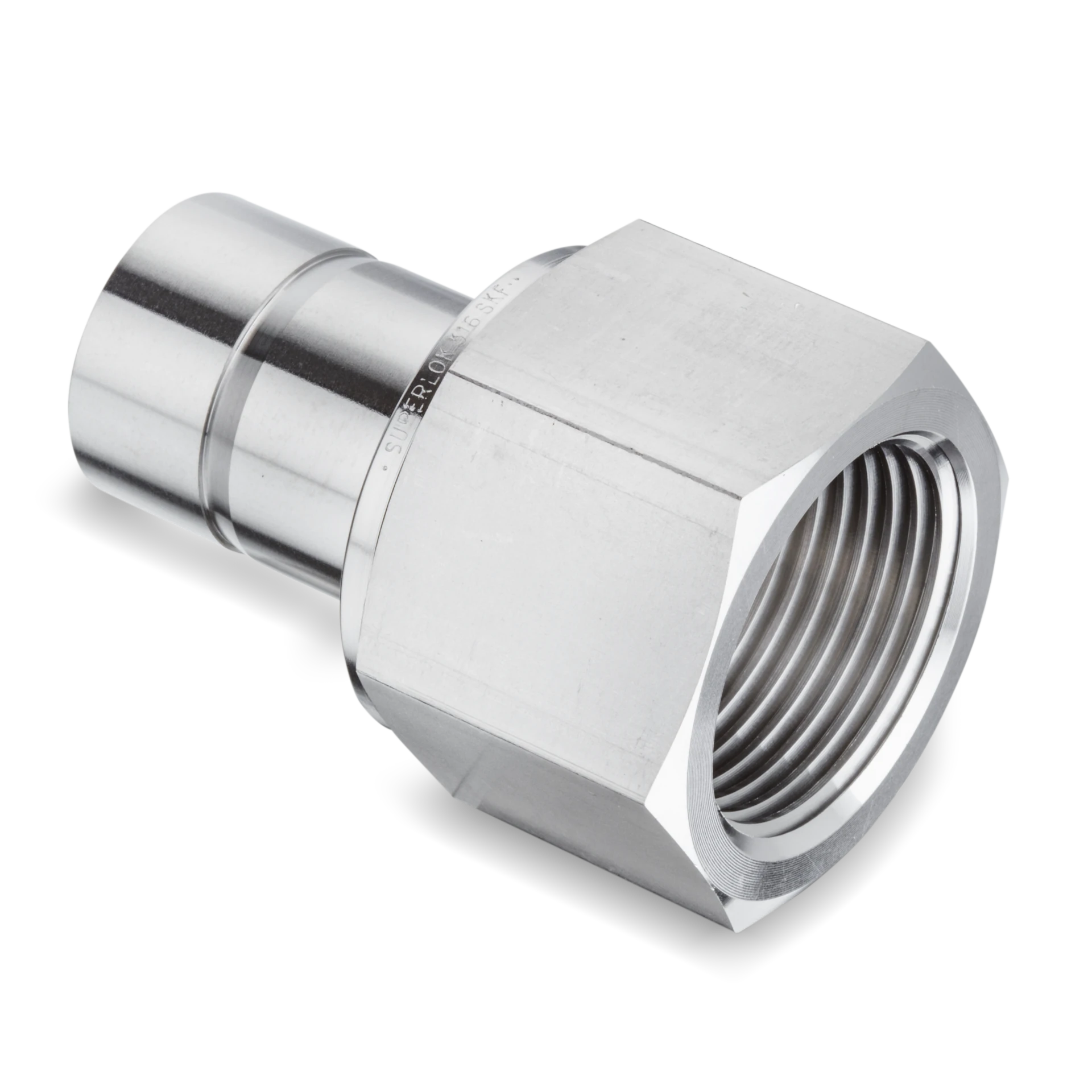

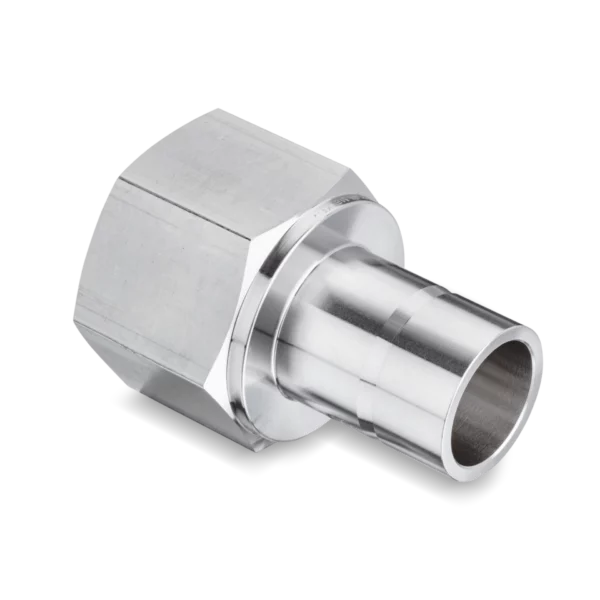

SFA Female Adapters

$14.06 – $52.25

Access our complete line of female adapters designed for your fluid system connections. Browse below to instantly request quotes or purchase female adapters for your exact specifications.

Looking for Swagelok® alternatives? Enter a part number in our search to find compatible alternatives.

Request Quote (805) 658-2043

Description

Specifications
End Type	Male National Pipe Thread (NPT)
Superlok Part Type	Female Adapter

Available Sizes

SFA Female Adapters SFA 6-8N

SFA 3/8 in. Tube Stub x 1/2 in. Female National Pipe Taper (FNPT) Female Adapter

$16.71

Dimensions
Dimension L	46.73mm
Dimension d [Min]	6.9mm

Specifications
End Size	44198in
End Type	Male National Pipe Thread (NPT)
Inch/Metric	Inch
Tube Outside Diameter D	3/8in
Width Across Flats h	1-1/16in

Compatibility
This part may be used in place of the following parts from other manufacturers
Swagelok	6-TA-7-8

SFA Female Adapters SFA 8-8N

SFA 1/2 in. Tube Stub x 1/2 in. Female National Pipe Taper (FNPT) Female Adapter

$18.83

Dimensions
Dimension L	51.80mm
Dimension d [Min]	9.4mm

Specifications
End Size	44263in
End Type	Male National Pipe Thread (NPT)
Inch/Metric	Inch
Tube Outside Diameter D	1/2in
Width Across Flats h	1-1/16in

Compatibility
This part may be used in place of the following parts from other manufacturers
Swagelok	8-TA-7-8

SFA Female Adapters SFA 10-8N

SFA 5/8 in. Tube Stub x 1/2 in. Female National Pipe Taper (FNPT) Female Adapter

$21.17

Dimensions
Dimension L	53.08mm
Dimension d [Min]	12.00mm

Specifications
End Size	44198in
End Type	Male National Pipe Thread (NPT)
Inch/Metric	Inch
Tube Outside Diameter D	5/8in
Width Across Flats h	1-1/16in

Compatibility
This part may be used in place of the following parts from other manufacturers
Swagelok	10-TA-7-8

SFA Female Adapters SFA 12-8N

SFA 3/4 in. Tube Stub x 1/2 in. Female National Pipe Taper (FNPT) Female Adapter

$23.83

Dimensions
Dimension L	52.83mm
Dimension d [Min]	14.8mm

Specifications
End Size	44198in
End Type	Male National Pipe Thread (NPT)
Inch/Metric	Inch
Tube Outside Diameter D	3/4in
Width Across Flats h	1-1/16in

Compatibility
This part may be used in place of the following parts from other manufacturers
Swagelok	12-TA-7-8

SFA Female Adapters SFA 12-12N

SFA 3/4 in. Tube Stub x 3/4 in. Female National Pipe Taper (FNPT) Female Adapter

$24.28

Dimensions
Dimension L	54.86mm
Dimension d [Min]	14.8mm

Specifications
End Size	44259in
End Type	Male National Pipe Thread (NPT)
Inch/Metric	Inch
Tube Outside Diameter D	3/4in
Width Across Flats h	1-5/16in

Compatibility
This part may be used in place of the following parts from other manufacturers
Swagelok	12-TA-7-12

SFA Female Adapters SFA 12-16N

SFA 3/4 in. Tube Stub x 1 in. Female National Pipe Taper (FNPT) Female Adapter

$41.19

Dimensions
Dimension L	58.42mm
Dimension d [Min]	14.8mm

Specifications
End Size	1in
End Type	Male National Pipe Thread (NPT)
Inch/Metric	Inch
Tube Outside Diameter D	3/4in
Width Across Flats h	1-5/8in

Compatibility
This part may be used in place of the following parts from other manufacturers
Swagelok	12-TA-7-16

SFA Female Adapters SFA 12M-4N

SFA 12 mm Tube Stub x 1/4 in. Female National Pipe Taper (FNPT) Female Adapter

$14.06

Dimensions
Dimension L	43.7mm
Dimension d [Min]	8.8mm

Specifications
End Size	44200in
End Type	Male National Pipe Thread (NPT)
Inch/Metric	Metric
Tube Outside Diameter D	12in
Width Across Flats h	19in

Compatibility
This part may be used in place of the following parts from other manufacturers
Swagelok	12M-TA-7-4

SFA Female Adapters SFA 14-12N

SFA 7/8 in. Tube Stub x 3/4 in. Female National Pipe Taper (FNPT) Female Adapter

$35.65

Dimensions
Dimension L	57.15mm
Dimension d [Min]	17.27mm

Specifications
End Size	44259in
End Type	Male National Pipe Thread (NPT)
Inch/Metric	Inch
Tube Outside Diameter D	7/8in
Width Across Flats h	1-5/16in

Compatibility
This part may be used in place of the following parts from other manufacturers
Swagelok	14-TA-7-12

SFA Female Adapters SFA 16-12N

SFA 1 in. Tube Stub x 3/4 in. Female National Pipe Taper (FNPT) Female Adapter

$43.22

Dimensions
Dimension L	60.70mm
Dimension d [Min]	20.4mm

Specifications
End Size	44259in
End Type	Male National Pipe Thread (NPT)
Inch/Metric	Inch
Tube Outside Diameter D	1in
Width Across Flats h	1-5/16in

Compatibility
This part may be used in place of the following parts from other manufacturers
Swagelok	16-TA-7-12

SFA Female Adapters SFA 16-16N

SFA 1 in. Tube Stub x 1 in. Female National Pipe Taper (FNPT) Female Adapter

$52.25
