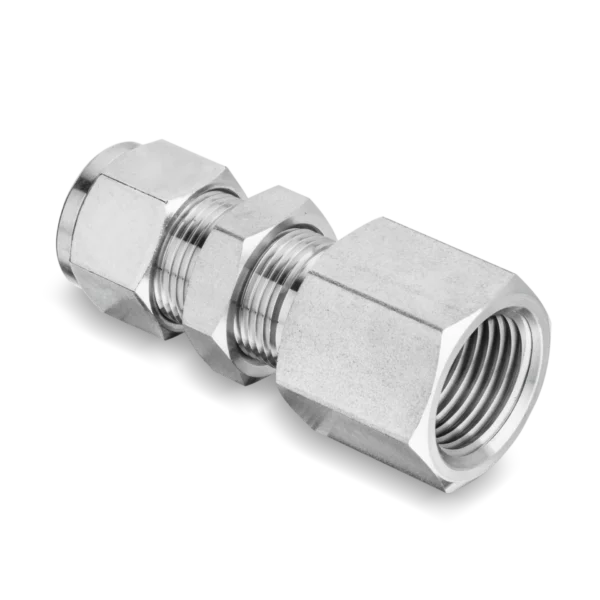

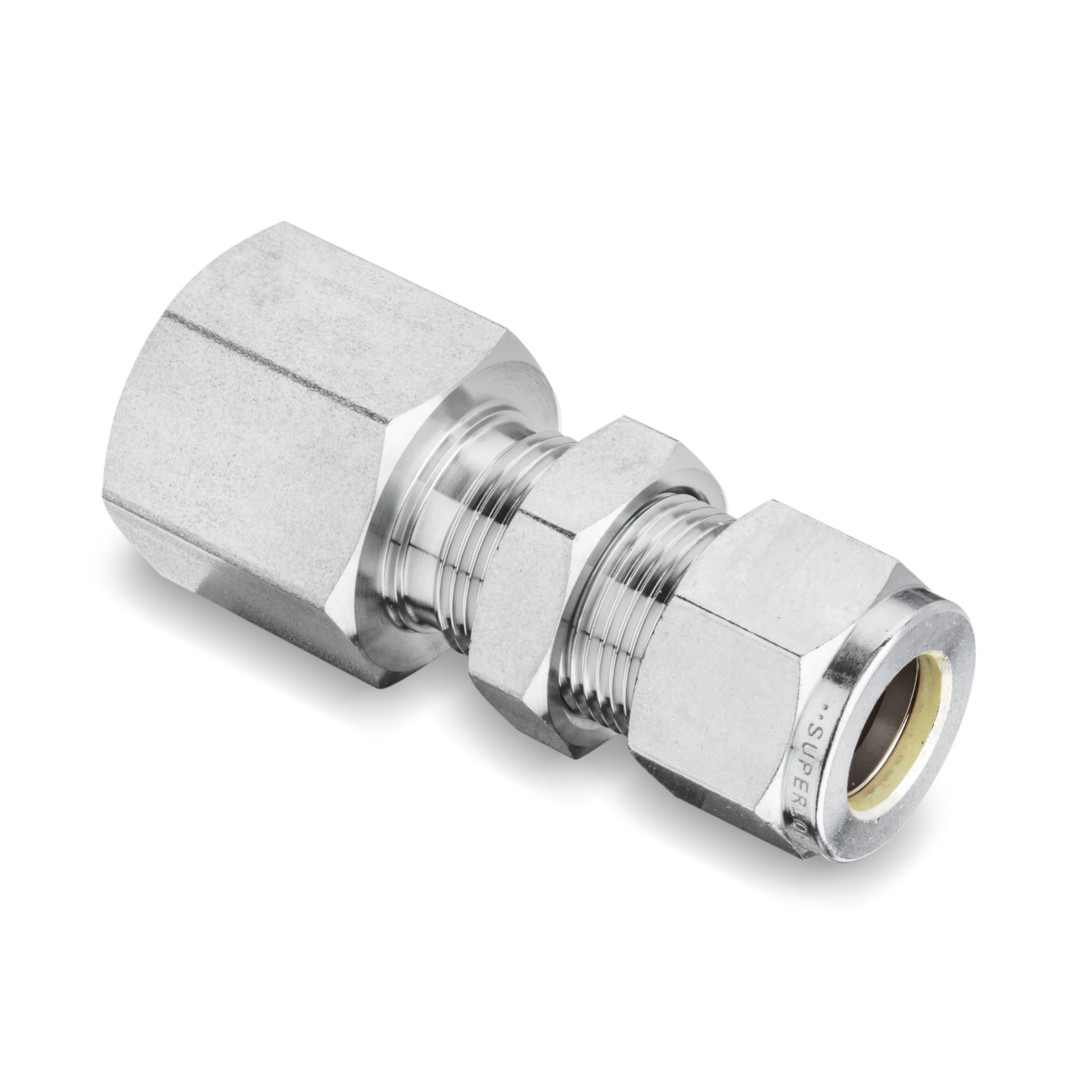

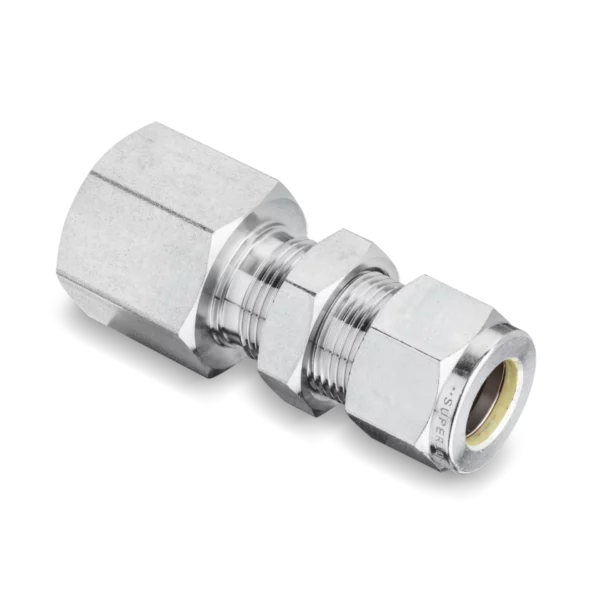

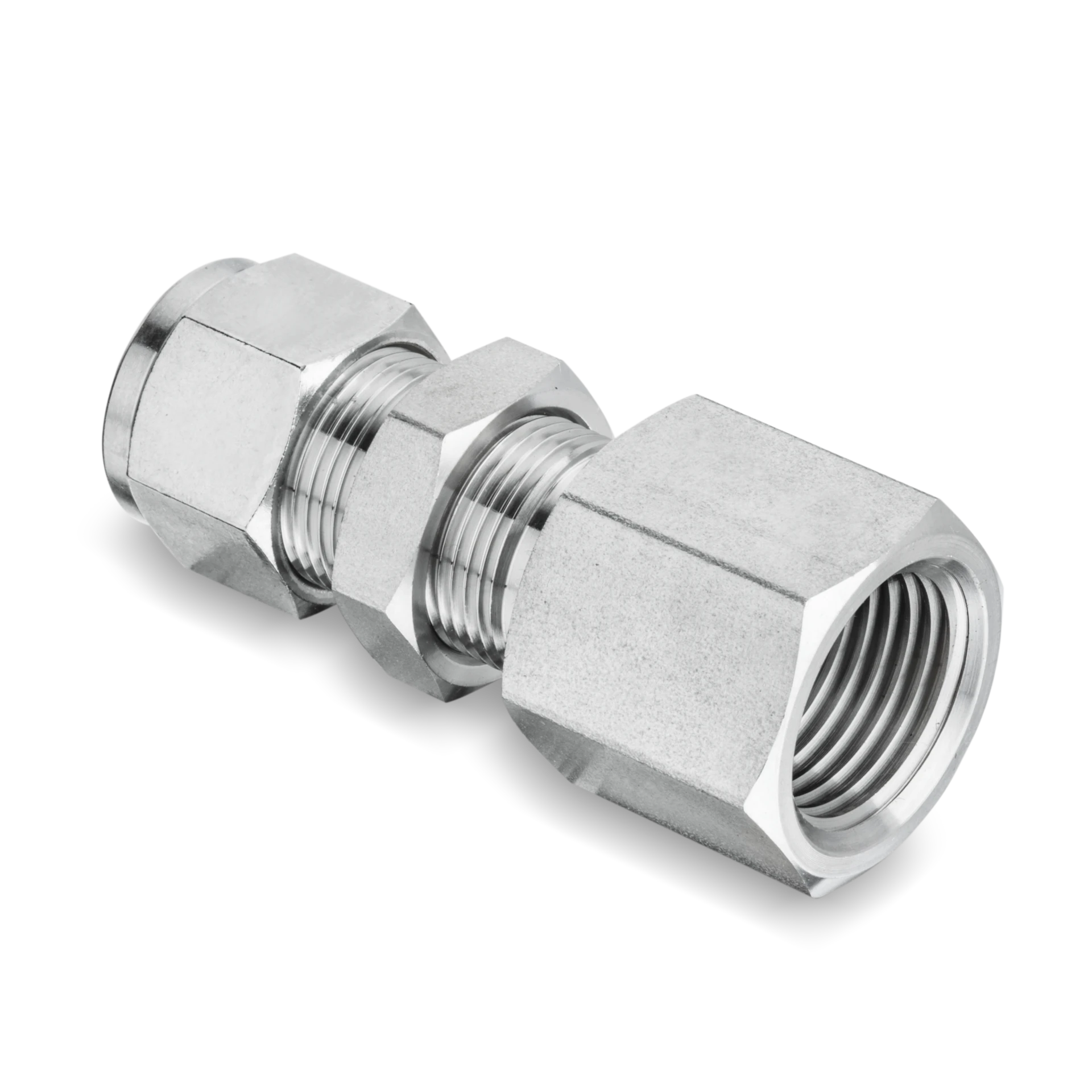

SBFC Bulkhead Female Connectors

Price range: $17.27 through $54.58

Add any item to your quote and we’ll get back to you with a price. Discounts apply for larger quantities, so the more you need, the better the rate. We’ll always get you the best possible price based on your volume.

See individual part details below

Access our complete line of bulkhead female connector options for your fluid system requirements. Our selection ensures reliable through-wall connections. Browse below to instantly request a quote or purchase the bulkhead female connector and female bulkhead connector you need.

Looking for Swagelok® alternatives? Enter a part number in our search to find compatible alternatives.

SKU: 17796 Category: Connector Tube Fittings

Click here for more info

Specifications

End Type	National Pipe Thread (NPT)
Superlok Part Type	Female Connector

Available Sizes

SBFC 2-2N SBFC Bulkhead Female Connectors

SBFC 1/8 in. Tube Outside Diameter D x 1/8 in. Female National Pipe Taper (FNPT) Bulkhead Female Connector

$32.07

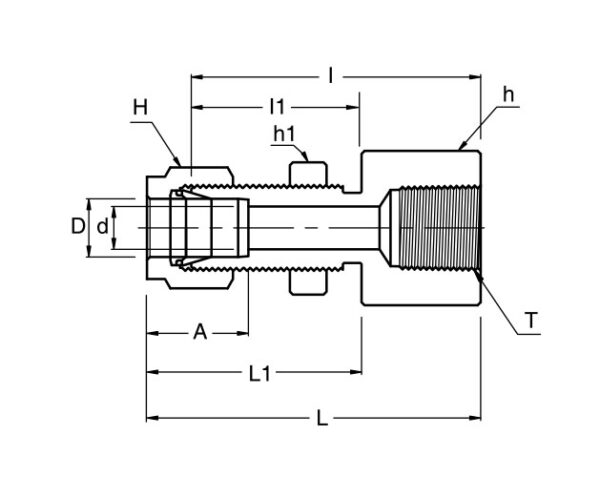

Dimension A	12.70mm
Dimension I	38.10mm
Dimension I1	24.63mm
Dimension L	44.70mm
Dimension L1	31.24mm
Dimension d [Min]	2.28mm

End Size	1/8in
End Type	National Pipe Thread (NPT)
Inch/Metric	Inch
Pannel Hole Drill Size	8.33mm
Pannel Thickness [Max]	12.70mm
Tube Outside Diameter D	1/8in
Width Across Flats h	9/16in, mm
Width Across Flats h1	1/2in, mm

Swagelok®	SS-200-71-2

SBFC 4-2N SBFC Bulkhead Female Connectors

SBFC 1/4 in. Tube Outside Diameter D x 1/8 in. Female National Pipe Taper (FNPT) Bulkhead Female Connector

$17.27

Dimension A	15.24mm
Dimension I	39.62mm
Dimension I1	26.16mm
Dimension L	46.99mm
Dimension L1	33.52mm
Dimension d [Min]	4.82mm

End Size	1/8in
End Type	National Pipe Thread (NPT)
Inch/Metric	Inch
Pannel Hole Drill Size	11.50mm
Pannel Thickness [Max]	10.16mm
Tube Outside Diameter D	1/4in
Width Across Flats h	5/8in, mm
Width Across Flats h1	5/8in, mm

Swagelok®	SS-400-71-2

SBFC 4-4N SBFC Bulkhead Female Connectors

SBFC 1/4 in. Tube Outside Diameter D x 1/4 in. Female National Pipe Taper (FNPT) Bulkhead Female Connector

$17.27

Dimension A	15.24mm
Dimension I	44.45mm
Dimension I1	26.16mm
Dimension L	51.81mm
Dimension L1	33.52mm
Dimension d [Min]	4.82mm

End Size	1/4in
End Type	National Pipe Thread (NPT)
Inch/Metric	Inch
Pannel Hole Drill Size	11.50mm
Pannel Thickness [Max]	10.16mm
Tube Outside Diameter D	1/4in
Width Across Flats h	3/4in, mm
Width Across Flats h1	5/8in, mm

Swagelok®	SS-400-71-4

SBFC 6-4N SBFC Bulkhead Female Connectors

SBFC 3/8 in. Tube Outside Diameter D x 1/4 in. Female National Pipe Taper (FNPT) Bulkhead Female Connector

$23.83

Dimension A	16.76mm
Dimension I	47.75mm
Dimension I1	29.46mm
Dimension L	55.11mm
Dimension L1	36.83mm
Dimension d [Min]	7.11mm

End Size	1/4in
End Type	National Pipe Thread (NPT)
Inch/Metric	Inch
Pannel Hole Drill Size	14.68mm
Pannel Thickness [Max]	11.17mm
Tube Outside Diameter D	3/8in
Width Across Flats h	3/4in, mm
Width Across Flats h1	3/4in, mm

Swagelok®	SS-600-71-4

SBFC 6M-4N SBFC Bulkhead Female Connectors

SBFC 6 mm Tube Outside Diameter D x 1/4 in. Female National Pipe Taper (FNPT) Bulkhead Female Connector

$18.55

Dimension A	15.3mm
Dimension I	44.4mm
Dimension I1	26.2mm
Dimension L	51.80mm
Dimension L1	33.60mm
Dimension d [Min]	4.8mm

End Size	in
End Type	National Pipe Thread (NPT)
Inch/Metric	Metric
Pannel Hole Drill Size	11.5mm
Pannel Thickness [Max]	10.2mm
Tube Outside Diameter D	6in
Width Across Flats h	in, 19mm
Width Across Flats h1	in, 16.0mm

Swagelok®	SS-6M0-71-4

SBFC 8-8N SBFC Bulkhead Female Connectors

SBFC 1/2 in. Tube Outside Diameter D x 1/2 in. Female National Pipe Taper (FNPT) Bulkhead Female Connector

$38.10

Dimension A	22.86mm
Dimension I	56.38mm
Dimension I1	31.75mm
Dimension L	66.54mm
Dimension L1	41.91mm
Dimension d [Min]	10.41mm

End Size	1/2in
End Type	National Pipe Thread (NPT)
Inch/Metric	Inch
Pannel Hole Drill Size	19.44mm
Pannel Thickness [Max]	12.70mm
Tube Outside Diameter D	1/2in
Width Across Flats h	1-1/16in, mm
Width Across Flats h1	15/16in, mm

Swagelok®	SS-810-71-8

SBFC 8M-4N SBFC Bulkhead Female Connectors

SBFC 8 mm Tube Outside Diameter D x 1/4 in. Female National Pipe Taper (FNPT) Bulkhead Female Connector

$22.85

Dimension A	16.2mm
Dimension I	46.7mm
Dimension I1	28.4mm
Dimension L	53.85mm
Dimension L1	35.55mm
Dimension d [Min]	6.3mm

End Size	in
End Type	National Pipe Thread (NPT)
Inch/Metric	Metric
Pannel Hole Drill Size	13.1mm
Pannel Thickness [Max]	11.2mm
Tube Outside Diameter D	8in
Width Across Flats h	in, 19mm
Width Across Flats h1	in, 17.4mm

Swagelok®	SS-8M0-71-4

SBFC 12-12N SBFC Bulkhead Female Connectors

SBFC 3/4 in. Tube Outside Diameter D x 3/4 in. Female National Pipe Taper (FNPT) Bulkhead Female Connector

$54.58

Dimension A	24.38mm
Dimension I	63.60mm
Dimension I1	37.33mm
Dimension L	73.51mm
Dimension L1	47.49mm
Dimension d [Min]	15.74mm

End Size	3/4in
End Type	National Pipe Thread (NPT)
Inch/Metric	Inch
Pannel Hole Drill Size	25.79mm
Pannel Thickness [Max]	16.76mm
Tube Outside Diameter D	3/4in
Width Across Flats h	1-1/4in, mm
Width Across Flats h1	1-3/16in, mm
