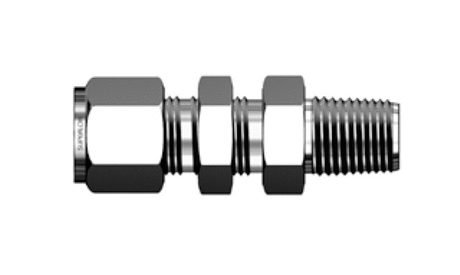

SBMC 1/2 in. Tube Outside Diameter D x 1/2 in. Male National Pipe Taper (MNPT) Bulkhead Male Connector
SBMC 8-8N
SBMC 1/2 in. Tube Outside Diameter D x 1/2 in. Male National Pipe Taper (MNPT) Bulkhead Male Connector
Add any item to your quote and we’ll get back to you with a price. Discounts apply for larger quantities, so the more you need, the better the rate. We’ll always get you the best possible price based on your volume.
Specifications
| End Size | 44198in |
|---|---|
| End Type | National Pipe Thread (NPT) |
| Inch/Metric | Inch |
| Pannel Hole Drill Size | 19.44mm |
| Pannel Thickness [Max] | 12.70mm |
| Tube Outside Diameter D | 1/2in |
| Width Across Flats h | 15/16in |
| Width Across Flats h1 | 15/16in |
Dimensions
| Dimension A | 22.86mm |
|---|---|
| Dimension I | 58.67mm |
| Dimension I1 | 31.75mm |
| Dimension L | 68.83mm |
| Dimension L1 | 41.91mm |
| Dimension d [Min] | 10.41mm |
Description
