SMC Male Connectors

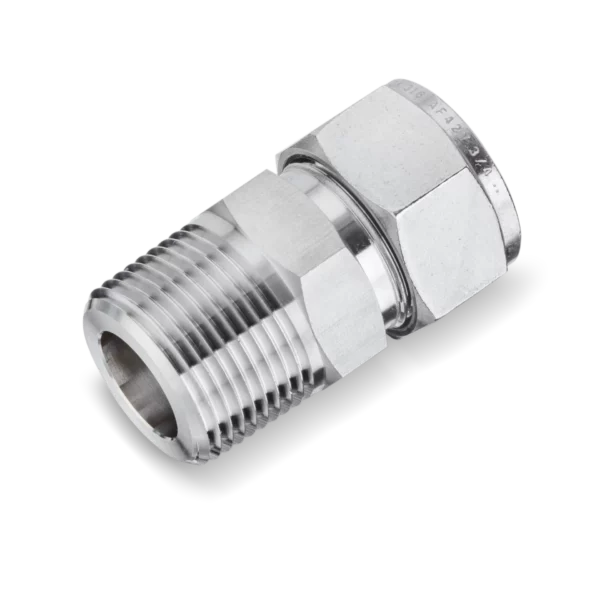

SMC 8-4N

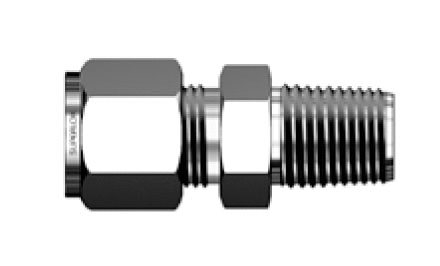

SMC 8-4N - Image 2
SMC 8-4N - Image 3
SMC Male Connectors

SMC 8-4N

$13.81

SMC 1/2 in. Tube Outside Diameter D x 1/4 in. Male National Pipe Taper (MNPT) Male Connector

Description

Stainless Steel SMC 8-4N | 1/2 in. Tube OD x 1/4 in. MNPT Male Connector – Bored-Through

The SMC 8-4N is a precision-machined male connector with a 1/2 in. tube OD and 1/4 in. male NPT thread. Built from 316 stainless steel, this fitting provides corrosion resistance and durability in harsh operating environments. It features a bored-through design, making it ideal for purge or drain applications that require full-flow capability. The component supports critical performance in pressure instrumentation, high-purity systems, and clean-in-place setups.

  • Connection Type: Tube-to-Male NPT with bored-through port

  • Material: 316 Stainless Steel

  • Design: Compact body with full-flow through-hole

  • Applications:
    – Hygienic fluid systems
    – Clean-in-place instrumentation
    – Sanitary stainless steel fittings
    – Gas and chemical handling systems
    – High-pressure sampling or venting

Need a reliable, full-flow male connector for your build? Add this to your cart below or request a quote.

Specifications
End Size 44200in
End Type National Pipe Thread (NPT)
Inch/Metric Inch
Tube Outside Diameter D 1/2in, mm
Width Across Flats h 13/16in, mm

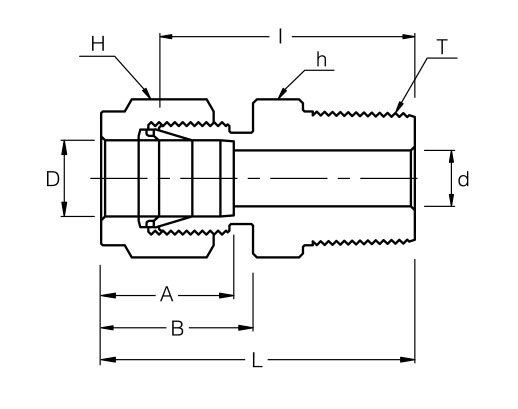

Dimensions
Dimension A 22.86mm
Dimension B 21.84mm
Dimension I 33.27mm
Dimension L 43.43mm
Dimension d [Min] 7.11mm
Compatibility
This part may be used in place of the following parts from other manufacturers
Swagelok 810-1-4
