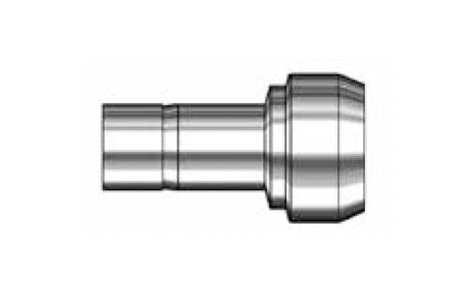

SRPC 1 in. x 3/4 in. Tube Outside Diameter D Reducing Port Connector
SRPC 16-12
SRPC 1 in. x 3/4 in. Tube Outside Diameter D Reducing Port Connector
Add any item to your quote and we’ll get back to you with a price. Discounts apply for larger quantities, so the more you need, the better the rate. We’ll always get you the best possible price based on your volume.
Specifications
| Inch/Metric | Inch |
|---|---|
| Tube Outside Diameter D | 3/4in |
| Tube Outside Diameter D1 | 1in |
Dimensions
| Dimension E | 28.44mm |
|---|---|
| Dimension I | 25.90mm |
| Dimension I1 | 4.06mm |
| Dimension L | 43.43mm |
| Dimension d [Min] | 14.8mm |
Description
(SRPC 16-12)
Compatibility
This part may be used in place of the following parts from other manufacturers:
| Swagelok® | SS-1611-PC-12 |
|---|
