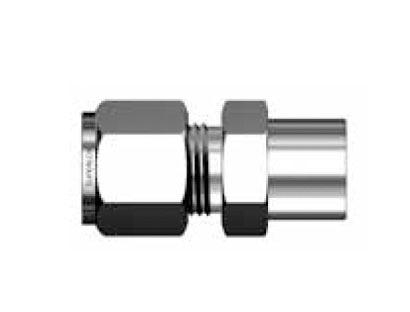

SSWC 3/4 in. Tube Outside Diameter D x 3/4 in. Tube Socket Weld Connector
SSWC-12
SSWC 3/4 in. Tube Outside Diameter D x 3/4 in. Tube Socket Weld Connector
Add any item to your quote and we’ll get back to you with a price. Discounts apply for larger quantities, so the more you need, the better the rate. We’ll always get you the best possible price based on your volume.
Specifications
Inch/Metric | Inch |
---|---|
Tube Outside Diameter D | 3/4in |
Width Across Flats h | 1-1/16in |
Dimensions
Dimension A | 24.38mm |
---|---|
Dimension B | 21.84mm |
Dimension I | 33.27mm |
Dimension I1 | 14.22mm |
Dimension L | 43.43mm |
Dimension L1 | 11.93mm |
Dimension P | 26.67mm |
Dimension d [Min] | 15.74mm |
Description
(SSWC-12)
Compatibility
This part may be used in place of the following parts from other manufacturers:
Swagelok® | SS-1210-6-12W |
---|
