SUC Union Crosses
Print Page
SUC-6
SUC-6 - Image 2
SUC-6 - Image 3

SUC-6

SUC 3/8 in. Tube Outside Diameter D Union Cross

Add any item to your quote and we’ll get back to you with a price. Discounts apply for larger quantities, so the more you need, the better the rate. We’ll always get you the best possible price based on your volume.
SKU: SUC-6 Category: Tag:
Click here for more info
Add to quote
Specifications
Inch/Metric Metric
Tube Outside Diameter D 3/8in
Width Across Flats h 5/8in

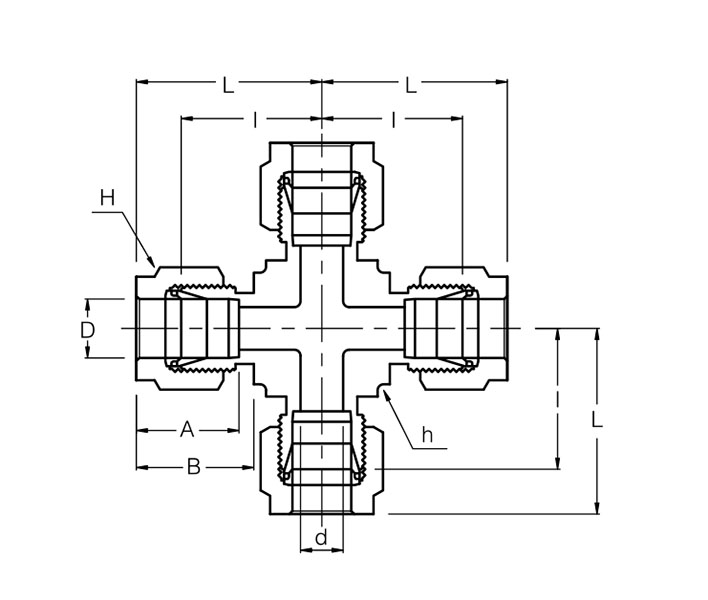

Dimensions
SUC-6
Dimension A 16.76mm
Dimension B 19.30mm
Dimension I 23.11mm
Dimension L 30.48mm
Dimension d [Min] 7.11mm
Description

(SUC-6)

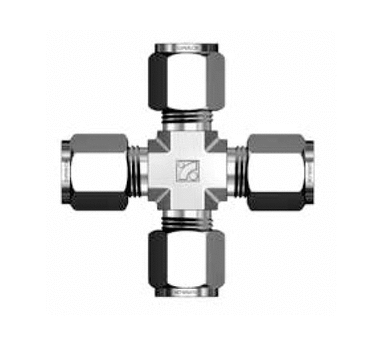

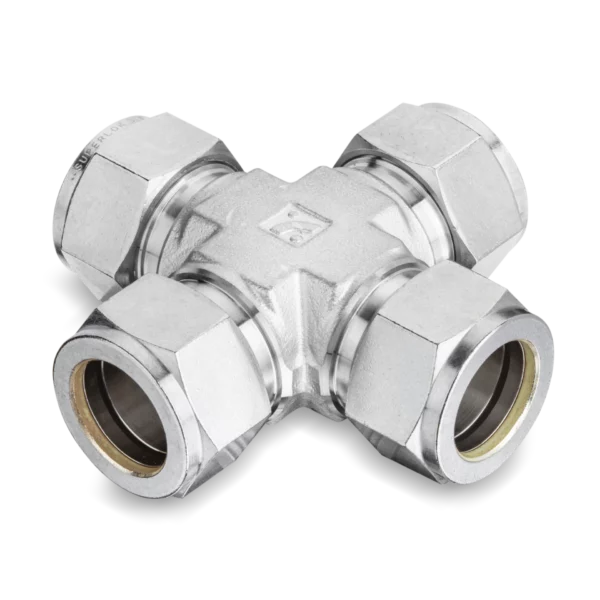

Stainless Steel SUC-6 | 3/8 in. Union Cross – High-Integrity 4-Way Tube Fitting

Built from durable 316 stainless steel, the SUC-6 is a compact 3/8 inch union cross engineered for leak-tight tube connections in four directions. Ideal for demanding applications involving fluid and gas distribution, this fitting is suited for instrumentation systems, analytical setups, and high-purity processes where strength and cleanliness are essential.

This union cross provides excellent resistance to corrosion, supports high-pressure systems, and ensures system reliability through precision machining and ferrule grip integrity. Its compact profile makes it easy to fit into tight assemblies without sacrificing flow.

  • Connection Type: Tube-to-Tube Compression Union Cross

  • Material: 316 Stainless Steel – corrosion-resistant

  • Design: 4-way intersection, dual ferrule design

  • Applications:
    – Sanitary stainless systems
    – Instrumentation tubing networks
    – Clean-in-place (CIP) lines and gas distribution
    – High-purity chemical flow applications

Need a rugged, four-way stainless tube fitting for your fluid system? Add the SUC-6 to your cart below or request a quote today.
