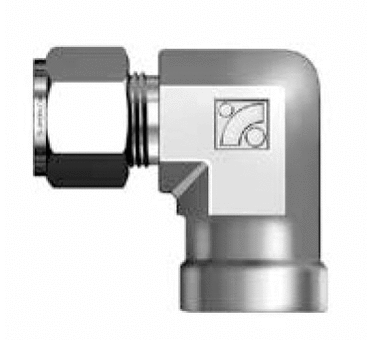

SFE 1/2 in. Tube Outside Diameter D x 1/4 in. Female National Pipe Taper (FNPT) Thread T 90 Degree Female Elbow
SFE 8-4N
SFE 1/2 in. Tube Outside Diameter D x 1/4 in. Female National Pipe Taper (FNPT) Thread T 90 Degree Female Elbow
Add any item to your quote and we’ll get back to you with a price. Discounts apply for larger quantities, so the more you need, the better the rate. We’ll always get you the best possible price based on your volume.
Specifications
| Angle | 90º |
|---|---|
| End Size | 44200in |
| End Type | Male National Pipe Thread (NPT) |
| Inch/Metric | Inch |
| Tube Outside Diameter D | 1/2in, mm |
| Width Across Flats h | 13/16in, mm |
Dimensions
| Dimension A | 22.86mm |
|---|---|
| Dimension B | 21.84mm |
| Dimension I | 25.90mm |
| Dimension L | 36.06mm |
| Dimension L1 | 22.35mm |
| Dimension d [Min] | 10.41mm |
