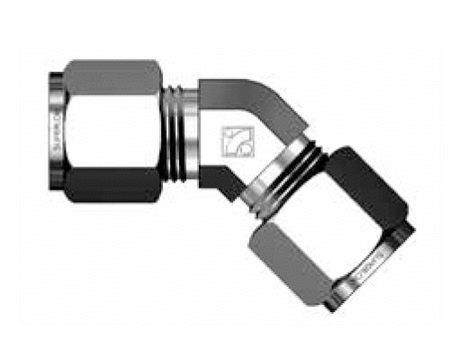

SHUE 3/4 in. Tube Outside Diameter D 45 Degree Union Elbow
SHUE-12
SHUE 3/4 in. Tube Outside Diameter D 45 Degree Union Elbow
Add any item to your quote and we’ll get back to you with a price. Discounts apply for larger quantities, so the more you need, the better the rate. We’ll always get you the best possible price based on your volume.
Specifications
Angle | 45º |
---|---|
Inch/Metric | Inch |
Tube Outside Diameter D | 3/4in |
Width Across Flats h | 1-1/16in |
Dimensions
Dimension A | 24.38mm |
---|---|
Dimension B | 21.88mm |
Dimension I | 21.3mm |
Dimension L | 31.48mm |
Dimension d [Min] | 15.74mm |
Description
(SHUE-12)
Compatibility
This part may be used in place of the following parts from other manufacturers:
Swagelok® | SS-1210-95 |
---|
