SME 90 Degree Male Elbows
Print Page

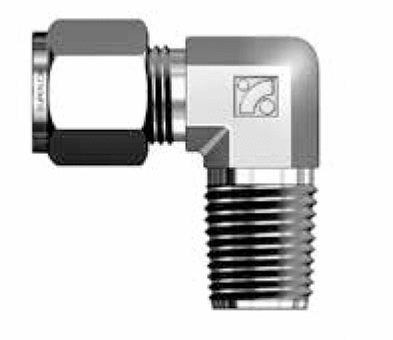

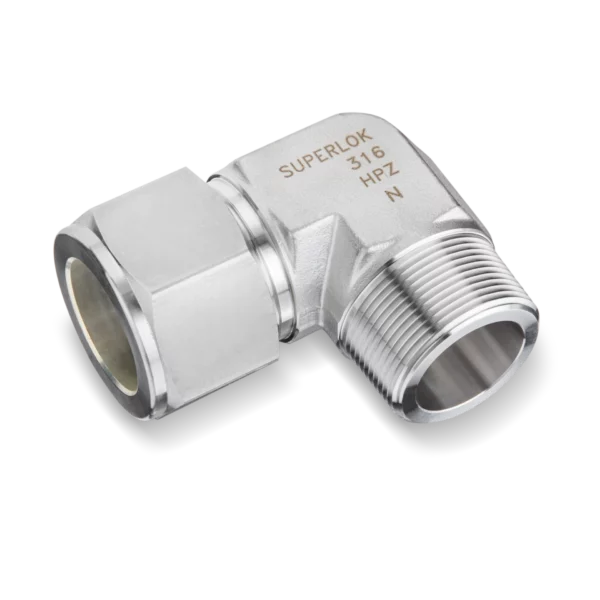

SME 2-2N
SME 2-2N - Image 2
SME 2-2N - Image 3

SME 2-2N

SME 1/8 in. Tube Outside Diameter D x 1/8 in. Male National Pipe Taper (MNPT) Thread T 90 Degree Male Elbow

Add any item to your quote and we’ll get back to you with a price. Discounts apply for larger quantities, so the more you need, the better the rate. We’ll always get you the best possible price based on your volume.
SKU: SME 2-2N Category: Tag:
Click here for more info
Add to quote
Specifications
Angle 90º
End Size 44204in
End Type Female National Pipe Thread (NPT)
Inch/Metric Inch
Tube Outside Diameter D 1/8in, mm
Width Across Flats h 1/2in, mm

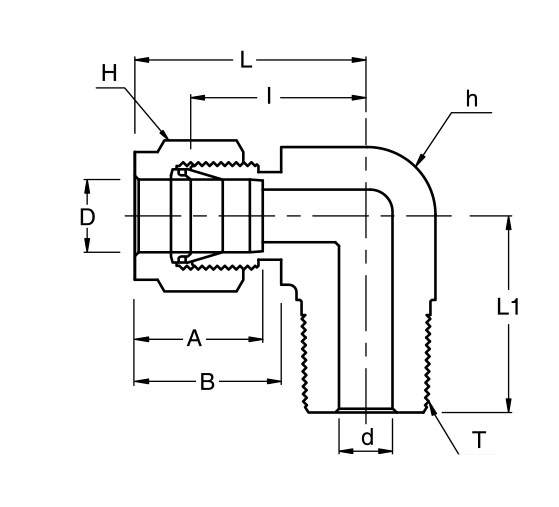

Dimensions
SME 2-2N
Dimension A 12.70mm
Dimension B 15.24mm
Dimension I 18.00mm
Dimension L 24.30mm
Dimension L1 18.80mm
Dimension d [Min] 2.28mm
Description

(SME 2-2N)

Stainless Steel Male Elbow – 1/8 in. Tube OD x 1/8 in. MNPT, 90°

Built for precision and reliability, this 316 stainless steel male elbow features a 90° angle for tight, leak-free turns in fluid or gas lines. With a dual-ferrule compression end and a 1/8 in. male NPT thread, it’s ideal for high-pressure systems where space is tight and performance is non-negotiable. The corrosion-resistant body makes it a top choice for cleanroom, chemical, fuel, and instrumentation environments.

  • Connection Type: 1/8 in. Tube OD x 1/8 in. Male NPT, 90° Elbow

  • Material: 316 Stainless Steel – corrosion-resistant alloy

  • Design: 90° compression elbow, dual ferrule, precision-machined

  • Applications:
    – Sanitary stainless steel systems
    – Precise fluid control lines
    – High-purity gas applications
    – Skid systems, fuel instrumentation setups, hydrogen, and CNG distribution

Need a dependable, compact elbow fitting for your layout? Add this one to your cart below or request a quote to get started.

Compatibility
This part may be used in place of the following parts from other manufacturers:
Swagelok® SS-200-2-2
Back to SME 90 Degree Male Elbows
