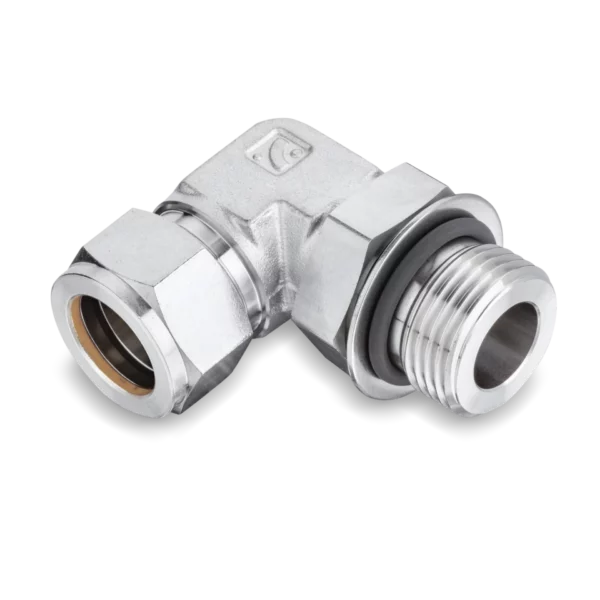

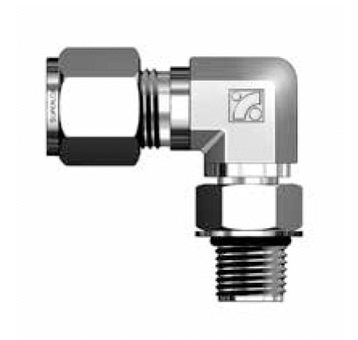

SPME 3/8 in. Tube Outside Diameter D x 1/4 in. Male British Standard Parallel Pipe (MBSPP) Thread T 90 Degree Positionable Male Elbow
SPME 6-4G
SPME 3/8 in. Tube Outside Diameter D x 1/4 in. Male British Standard Parallel Pipe (MBSPP) Thread T 90 Degree Positionable Male Elbow
Add any item to your quote and we’ll get back to you with a price. Discounts apply for larger quantities, so the more you need, the better the rate. We’ll always get you the best possible price based on your volume.
Specifications
| Angle | 90º |
|---|---|
| End Size | , 44200in |
| End Type | International Standardization of Organization (ISO) Parallel Thread (U) |
| Inch/Metric | Inch |
| Tube Outside Diameter D | 3/8in |
| Width Across Flats H | 11/16in |
| Width Across Flats h1 | 3/4in |
| Width Across Flats h2 | 11/16in |

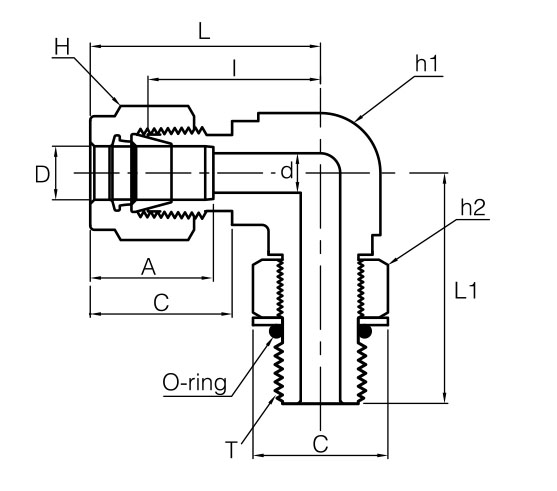

Dimensions
| Dimension A | 16.76mm |
|---|---|
| Dimension B | 19.30mm |
| Dimension C | 22.86mm |
| Dimension I | 23.60mm |
| Dimension L | 30.48mm |
| Dimension L1 | 32.26mm |
| Dimension d [Min] | 5.84mm |
