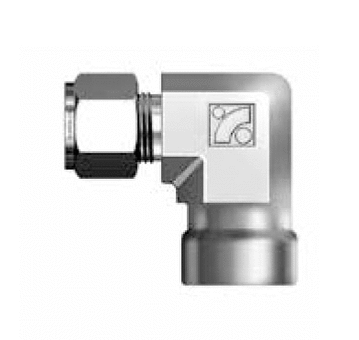

SSWE 1/2 in. Tube Outside Diameter D x 1/2 in. Tube Socket Weld 90 Degree Elbow
SSWE-8
SSWE 1/2 in. Tube Outside Diameter D x 1/2 in. Tube Socket Weld 90 Degree Elbow
Add any item to your quote and we’ll get back to you with a price. Discounts apply for larger quantities, so the more you need, the better the rate. We’ll always get you the best possible price based on your volume.
Specifications
| Angle | 90º |
|---|---|
| Inch/Metric | Inch |
| Tube Outside Diameter D | 1/2in |
| Width Across Flats h | 13/16in |
Dimensions
| Dimension A | 22.86mm |
|---|---|
| Dimension B | 21.84mm |
| Dimension I | 25.90mm |
| Dimension I1 | 12.70mm |
| Dimension L | 36.06mm |
| Dimension L1 | 25.90mm |
| Dimension P | 20.57mm |
| Dimension d [Min] | 10.41mm |
Description
(SSWE-8)
Compatibility
This part may be used in place of the following parts from other manufacturers:
| Swagelok® | SS-810-9-8W |
|---|
