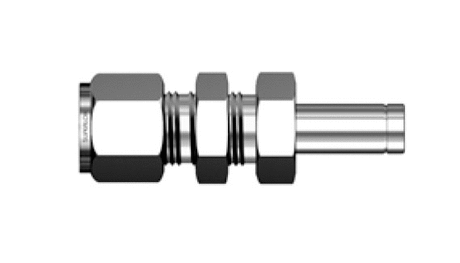

SBR 1/8 in. Tube Outside Diameter D x 1/8 in. Tube Stub Bulkhead Reducer
SBR 2-2
SBR 1/8 in. Tube Outside Diameter D x 1/8 in. Tube Stub Bulkhead Reducer
Add any item to your quote and we’ll get back to you with a price. Discounts apply for larger quantities, so the more you need, the better the rate. We’ll always get you the best possible price based on your volume.
Specifications
| Inch/Metric | Inch |
|---|---|
| Pannel Hole Drill Size | 8.33mm |
| Pannel Thickness [Max] | 12.70mm |
| Tube Outside Diameter D | 1/8in |
| Width Across Flats h | 1/2in |
Dimensions
| Dimension A | 12.70mm |
|---|---|
| Dimension I | 42.92mm |
| Dimension I1 | 24.63mm |
| Dimension L | 49.53mm |
| Dimension L1 | 31.24mm |
| Dimension d [Min] | 2.1mm |
