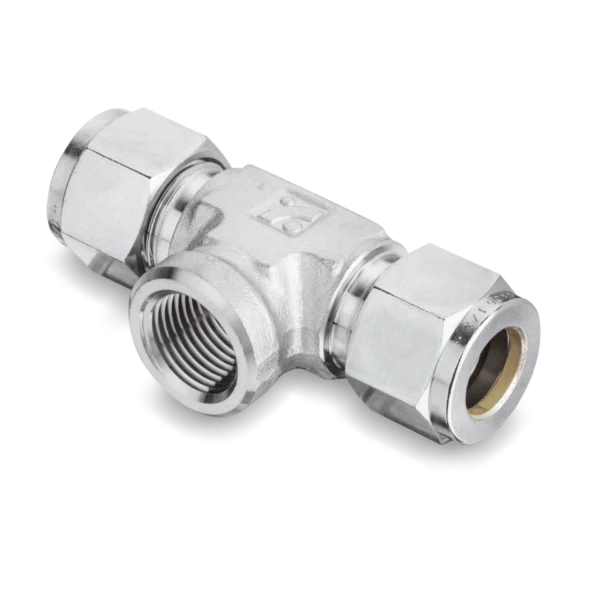

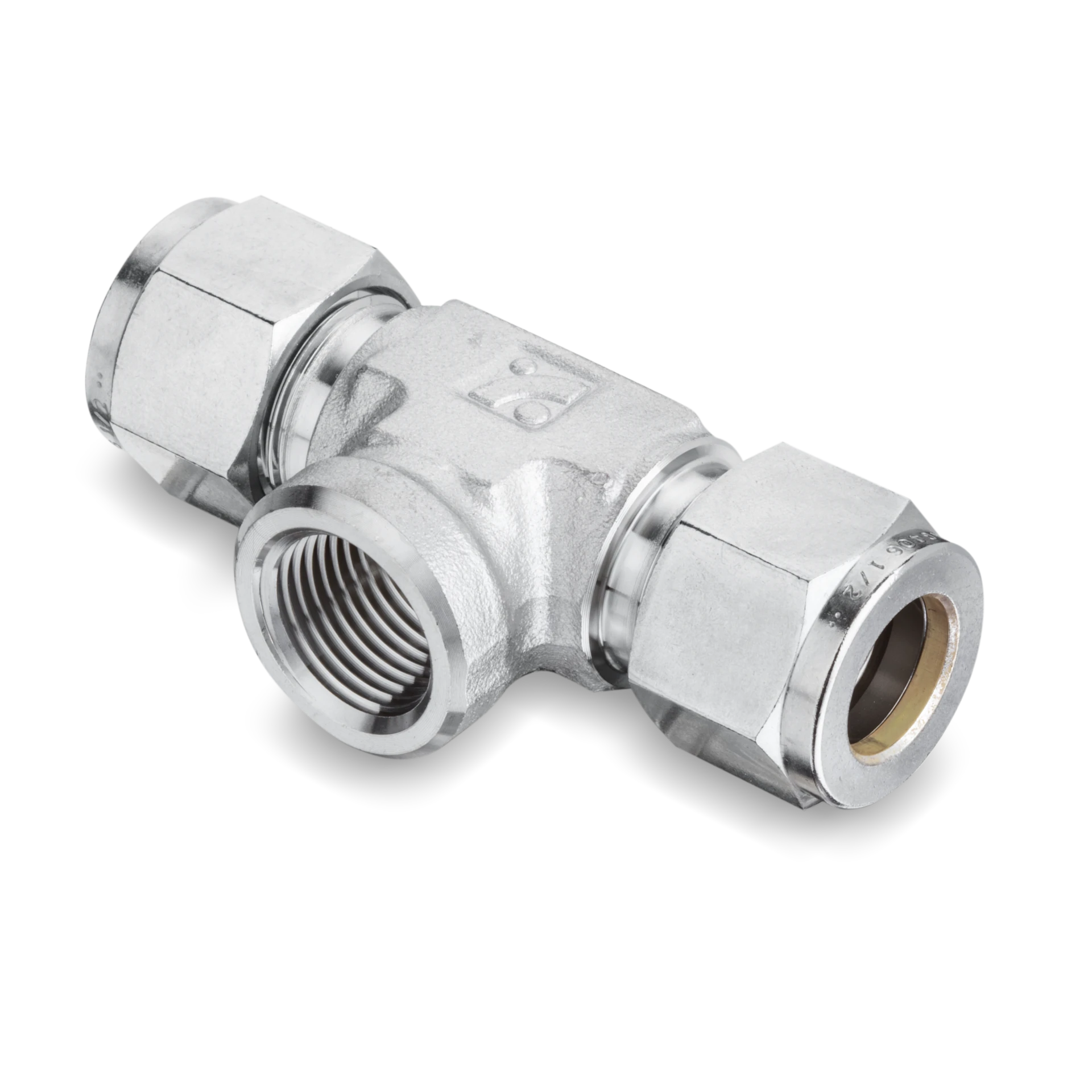

SFBT Female Branch Tees
SFBT Female Branch Tees
Price range: $27.18 through $161.52
Add any item to your quote and we’ll get back to you with a price. Discounts apply for larger quantities, so the more you need, the better the rate. We’ll always get you the best possible price based on your volume.
See individual part details below
Access our complete line of female branch tee fitting solutions for three-way flow connections. Our selection enables versatile system configurations for your fluid system. Browse below to instantly request quotes or purchase the component you need.
Looking for Swagelok® alternatives? Enter a part number in our search to find compatible alternatives.
Specifications
| End Type | National Pipe Thread (NPT) |
|---|---|
| Industry Standards/Certifications | American National Standards Institute (ANSI) B1.20.1 |
| Superlok Part Type | Female Tee |
Available Sizes
SFBT 2-2N SFBT Female Branch Tees
SFBT 1/8 in. Tube Outside Diameter D x 1/8 in. Female National Pipe Taper (FNPT) Thread Female Branch Tee
$29.53
SFBT 4-2N SFBT Female Branch Tees
SFBT 1/4 in. Tube Outside Diameter D x 1/8 in. Female National Pipe Taper (FNPT) Thread Female Branch Tee
$27.18
SFBT 4-4N SFBT Female Branch Tees
SFBT 1/4 in. Tube Outside Diameter D x 1/4 in. Female National Pipe Taper (FNPT) Thread Female Branch Tee
$31.63
SFBT 6-4N SFBT Female Branch Tees
SFBT 3/8 in. Tube Outside Diameter D x 1/4in. Female National Pipe Taper (FNPT) Thread Female Branch Tee
$32.64
SFBT 6-6N SFBT Female Branch Tees
SFBT 3/8 in. Tube Outside Diameter D x 3/8 in. Female National Pipe Taper (FNPT) Thread Female Branch Tee
$36.48
SFBT 6-8N SFBT Female Branch Tees
SFBT 3/8 in. Tube Outside Diameter D x 1/2 in. Female National Pipe Taper (FNPT) Thread Female Branch Tee
$42.89
SFBT 6M-4N SFBT Female Branch Tees
SFBT 6 mm Tube Outside Diameter D x 1/4 in. Female National Pipe Taper (FNPT) Thread Female Branch Tee
$32.30
SFBT 8-4N SFBT Female Branch Tees
SFBT 1/2 in. Tube Outside Diameter D x 1/4 in. Female National Pipe Taper (FNPT) Thread Female Branch Tee
$49.46
SFBT 8-6N SFBT Female Branch Tees
SFBT 1/2 in. Tube Outside Diameter D x 3/8 in. Female National Pipe Taper (FNPT) Thread Female Branch Tee
$46.51
SFBT 8-8N SFBT Female Branch Tees
SFBT 1/2 in. Tube Outside Diameter D x 1/2 in. Female National Pipe Taper (FNPT) Thread Female Branch Tee
$52.92
SFBT 12-8N SFBT Female Branch Tees
SFBT 3/4 in. Tube Outside Diameter D x 1/2 in. Female National Pipe Taper (FNPT) Thread Female Branch Tee
$91.34
SFBT 12-12N SFBT Female Branch Tees
SFBT 3/4 in. Tube Outside Diameter D x 3/4 in. Female National Pipe Taper (FNPT) Thread Female Branch Tee
$91.39
SFBT 16-12N SFBT Female Branch Tees
SFBT 1 in. Tube Outside Diameter D x 3/4 in. Female National Pipe Taper (FNPT) Thread Female Branch Tee
$144.82
SFBT 16-16N SFBT Female Branch Tees
SFBT 1 in. Tube Outside Diameter D x 1 in. Female National Pipe Taper (FNPT) Thread Female Branch Tee
$161.52
