SMRT 6-4N
$28.74

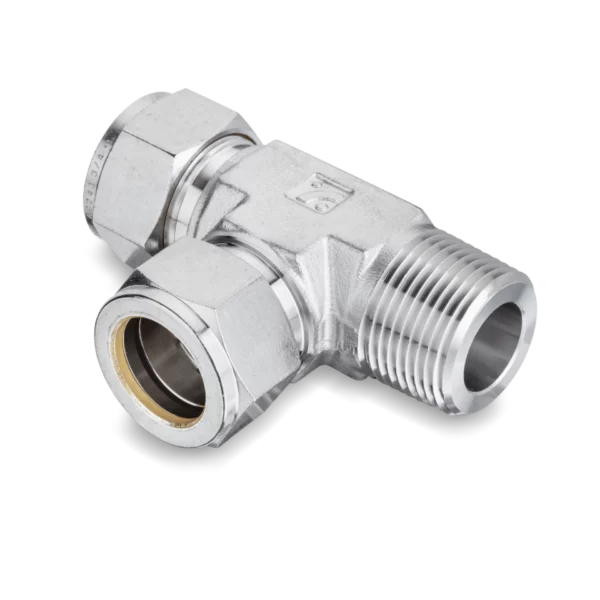

SMRT 3/8 in. Tube Outside Diameter D x 1/4 in. Male National Pipe Taper (MNPT) Thread Male Run Tee
Stainless Steel Male Run Tee – 3/8 in. Tube OD x 1/4 in. MNPT (SMRT 6-4N)
The SMRT 6-4N is a 3/8 in. tube outside diameter x 1/4 in. Male National Pipe Taper (MNPT) run tee, engineered from 316 stainless steel for maximum corrosion resistance and mechanical durability. This compact, precision-machined run tee features a female NPT branch and a male-threaded run, making it a versatile option for mixed connection points.
This tee is built for high-performance pressure systems and instrumentation applications where reliability and sealing integrity are critical. It complies with ANSI B1.20.1 standards and is ideal for use in sanitary tubing systems, fuel handling, and other demanding industrial fluid processes.
-
Connection Type: Female NPT Branch x Male NPT Run x Tube End
-
Material: 316 Stainless Steel – corrosion-resistant alloy
-
Design: Straight-through run with a 90° branch
-
Applications:
– Sanitary and hygienic fluid systems
– Pressure instrumentation and gas loops
– Skid systems and OEM fluid assemblies
– Clean-in-place process lines
Looking for a rugged male run tee that won’t compromise your system’s integrity? Add this to your cart or request a quote to lock in precision and performance.
| End Size | 44200in |
|---|---|
| End Type | Female National Pipe Thread (NPT) |
| Inch/Metric | Inch |
| Industry Standards/Certifications | American National Standards Institute (ANSI) B1.20.1 |
| Tube Outside Diameter D | 3/8in |
| Width Across Flats h | 5/8in |
| Dimension A | 16.76mm |
|---|---|
| Dimension B | 19.30mm |
| Dimension I | 23.11mm |
| Dimension L | 30.48mm |
| Dimension L1 | 25.40mm |
| Dimension d [Min] | 7.11mm |
| Swagelok | 600-3TMT |
|---|
