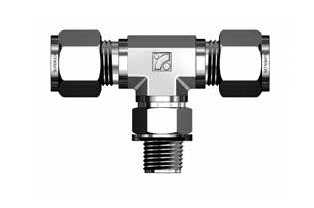

SPMBT 3/8 in. Tube Outside Diameter D x 9/16-18 Society of Automotive Engineering (SAE) Straight Thread Positionable Male Branch Tee with O-Ring
SPMBT 6-6U
SPMBT 3/8 in. Tube Outside Diameter D x 9/16-18 Society of Automotive Engineering (SAE) Straight Thread Positionable Male Branch Tee with O-Ring
Add any item to your quote and we’ll get back to you with a price. Discounts apply for larger quantities, so the more you need, the better the rate. We’ll always get you the best possible price based on your volume.
Specifications
| End Size | 43359in |
|---|---|
| End Type | Society of Automotive Engineering (SAE)/MS Straight Thread |
| Inch/Metric | Inch |
| Industry Standards/Certifications | Array |
| Tube Outside Diameter D | in, 3/8mm |
| Width Across Flats H | in, 11/16mm |
| Width Across Flats h1 | 5/8in |
| Width Across Flats h2 | 11/16in |
Dimensions
| Dimension A | 16.76mm |
|---|---|
| Dimension B | 19.30mm |
| Dimension C | 20.07mm |
| Dimension I | 24.64mm |
| Dimension L | 32.00mm |
| Dimension L1 | 32.26mm |
| Dimension d [Min] | 7.11mm |
