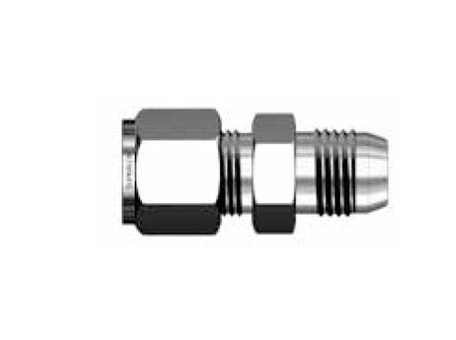

SAU 3/4 in. Tube Outside Diameter D x 3/4 in. Male Joint Industry Council (JIC) Union
SAU 12-12U
SAU 3/4 in. Tube Outside Diameter D x 3/4 in. Male Joint Industry Council (JIC) Union
Add any item to your quote and we’ll get back to you with a price. Discounts apply for larger quantities, so the more you need, the better the rate. We’ll always get you the best possible price based on your volume.
Specifications
| End Size | 1-1/16-12 |
|---|---|
| End Type | Straight Thread |
| Inch/Metric | Inch |
| Tube Outside Diameter D | 3/4in |
| Width Across Flats h | 1-1/8in |
Dimensions
| Dimension A | 24.38mm |
|---|---|
| Dimension B | 21.84mm |
| Dimension I | 43.18mm |
| Dimension L | 53.34mm |
| Dimension d [Min] | 15.49mm |
Description
(SAU 12-12U)
Compatibility
This part may be used in place of the following parts from other manufacturers:
| Swagelok® | SS-1210-6-12AN |
|---|
