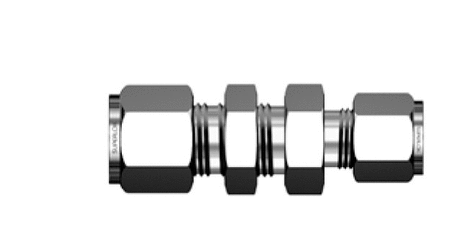

SBHRU 1/2 in. Tube Outside Diameter D x 1/4 in. Tube Outside Diameter D1 Bulkhead Reducing Union
SBHRU 8-4
SBHRU 1/2 in. Tube Outside Diameter D x 1/4 in. Tube Outside Diameter D1 Bulkhead Reducing Union
Add any item to your quote and we’ll get back to you with a price. Discounts apply for larger quantities, so the more you need, the better the rate. We’ll always get you the best possible price based on your volume.
Specifications
| Inch/Metric | Inch |
|---|---|
| Panel Thickness [Max] | 12.70mm |
| Tube Outside Diameter D | 1/2in |
| Tube Outside Diameter D1 | 1/4in |
| Width Across Flats H1 | 9/16in |
| Width Across Flats h | 15/16in |
Dimensions
| Dimension A | 22.86mm |
|---|---|
| Dimension A1 | 15.24mm |
| Dimension I | 49.27mm |
| Dimension I1 | 31.75mm |
| Dimension L | 66.80mm |
| Dimension L1 | 41.91mm |
| Dimension L2 | 17.78mm |
| Dimension d [Min] | 4.82mm |
