SBHU Bulkhead Unions
Print Page
SBHU-6-TM
SBHU-6-TM - Image 2
SBHU-6-TM - Image 3

SBHU-6-TM

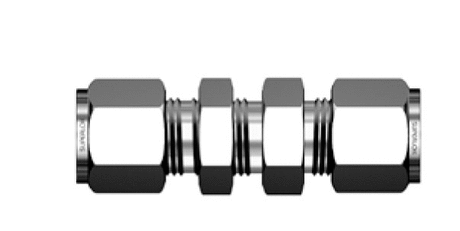

SBHU 3/8 in. Tube Outside Diameter D Bored Through Bulkhead Union

Add any item to your quote and we’ll get back to you with a price. Discounts apply for larger quantities, so the more you need, the better the rate. We’ll always get you the best possible price based on your volume.
SKU: SBHU-6-TM Category:
Click here for more info
Add to quote
Specifications
Inch/Metric Inch
Panel Thickness [Max] 11.17mm
Tube Outside Diameter D 3/8in
Width Across Flats h 3/4in
Dimensions
SBHU-6-TM
Dimension A 16.76mm
Dimension B 19.30mm
Dimension I 47.49mm
Dimension I1 29.46mm
Dimension L 62.23mm
Dimension L1 36.83mm
Dimension d [Min] 7.11mm
Description

(SBHU-6-TM)

Stainless Steel Bulkhead Union – 3/8 in. Tube OD, Bored Through Compression Fitting

Engineered for seamless internal flow and panel-mounted control, the SBHU-6-TM is a 3/8 inch tube OD bored through bulkhead union constructed from 316 stainless steel, delivering corrosion resistance and reliability for demanding pressure systems.

This fitting is ideal for clean, continuous flow paths in fuel, gas, and liquid processing environments where precise fluid control and instrumentation stability are critical.

• Connection Type: Tube-to-Tube Bored Through Bulkhead Compression Union
• Material: 316 Stainless Steel – corrosion-resistant, instrumentation-grade alloy
• Design: Bored-through body, dual ferrule design, panel-mountable configuration

• Applications:
– Clean-in-place instrumentation and hygienic fluid processors
– Sanitary stainless steel fitting setups and pressure loops
– Water purification systems, lab gas panels, and skid instrumentation builds
– Systems requiring uninterrupted flow for CNG, fuel, and critical media

This union is part of Superlok’s high-integrity compression fitting line, offering leak-tight, vibration-resistant performance under dynamic operating conditions.
