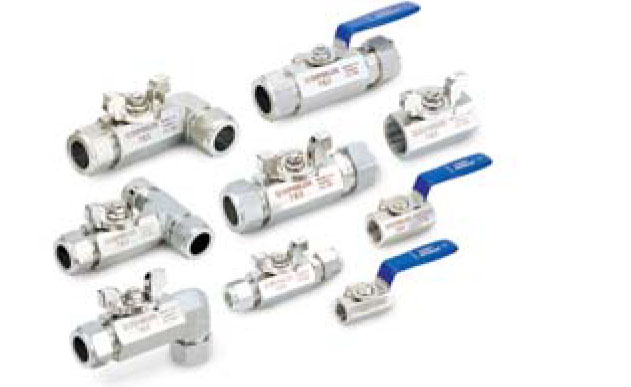

SBV210 Series Ball Valves

Price range: $17.39 through $184.84

Add any item to your quote and we’ll get back to you with a price. Discounts apply for larger quantities, so the more you need, the better the rate. We’ll always get you the best possible price based on your volume.

See individual part details below

Access our complete line of ball valves engineered for smooth, low-torque operation. Our selection features compact designs with butterfly and lever handle options. Browse below to instantly request a quote or purchase the ball valves tested for reliability at our factory.

Looking for Swagelok® alternatives? Enter a part number in our search to find compatible alternatives.

SKU: 18401 Category: Ball Valves

Click here for more info

Specifications

Inch/Metric	Inch
Pressure Rating	69bar, 1000psig
Pressure [Max]	1000psi
Superlok Part Type	Ball Valve

Available Sizes

SBV210-F-4N SBV210 Series Ball Valves

SBV 1/4 in. Female National Pipe Taper (FNPT) Thread, Butterfly Handle, 1000 psi Pressure [Max] Ball Valve

$17.39

Dimension A	42.8mm
Dimension H	23.0mm
Dimension I	600mm
Dimension L	300mm

Cv Coefficient	1.4
End Size	44200in
End Type	Female National Pipe Thread (NPT)
Inch/Metric	Inch
Operating Temperature [Max]	ºF
Operating Temperature [Min]	ºF
Orifice	5.0mm
Pressure Rating	69bar, 1000psig
Pressure [Max]	1000psi

Swagelok®	SS-

SBV210-F-4N-BH SBV210 Series Ball Valves

SBV 1/4 in. Female National Pipe Taper (FNPT) Thread, Lever Handle, 1000 psi Pressure [Max] Ball Valve

$17.39

Dimension A	42.8mm
Dimension H	23.0mm
Dimension I	600mm
Dimension L	300mm

Cv Coefficient	1.4
End Size	44200in
End Type	Female National Pipe Thread (NPT)
Inch/Metric	Inch
Operating Temperature [Max]	ºF
Operating Temperature [Min]	ºF
Orifice	5.0mm
Pressure Rating	69bar, 1000psig
Pressure [Max]	1000psi

Swagelok®	SS-

SBV210-F-4N-PE SBV210 Series Ball Valves

SBV 1/4 in. Female National Pipe Taper (FNPT) Thread, Peek Seats, -65 to 450 ºF Operating Temperature, 1000 psi Pressure [Max] Ball Valve

$23.89

Dimension A	42.8mm
Dimension H	23.0mm
Dimension I	600mm
Dimension L	300mm

Cv Coefficient	1.4
End Size	44200in
End Type	Female National Pipe Thread (NPT)
Inch/Metric	Inch
Operating Temperature [Max]	450ºF
Operating Temperature [Min]	-65ºF
Orifice	5.0mm
Pressure Rating	69bar, 1000psig
Pressure [Max]	1000psi

Swagelok®	SS-

SBV210-F-4N-PE-BH SBV210 Series Ball Valves

SBV 1/4 in. Female National Pipe Taper (FNPT) Thread, Lever Handle, Peek Seats, -65 to 450 ºF Operating Temperature, 1000 psi Pressure [Max] Ball Valve

$23.89

Dimension A	42.8mm
Dimension H	23.0mm
Dimension I	600mm
Dimension L	300mm

Cv Coefficient	1.4
End Size	44200in
End Type	Female National Pipe Thread (NPT)
Inch/Metric	Inch
Operating Temperature [Max]	450ºF
Operating Temperature [Min]	-65ºF
Orifice	5.0mm
Pressure Rating	69bar, 1000psig
Pressure [Max]	1000psi

Swagelok®	SS-

SBV210-F-6N SBV210 Series Ball Valves

SBV 3/8 in. Female National Pipe Taper (FNPT) Thread, Butterfly Handle, 1000 psi Pressure [Max] Ball Valve

$20.83

Dimension A	46.6mm
Dimension H	31.0mm
Dimension I	90.0mm
Dimension L	48.0mm

Cv Coefficient	2.6
End Size	44263in
End Type	Female National Pipe Thread (NPT)
Inch/Metric	Inch
Operating Temperature [Max]	ºF
Operating Temperature [Min]	ºF
Orifice	7.5mm
Pressure Rating	69bar, 1000psig
Pressure [Max]	1000psi

Swagelok®	SS-

SBV210-F-6N-BH SBV210 Series Ball Valves

SBV 3/8 in. Female National Pipe Taper (FNPT) Thread, Lever Handle, 1000 psi Pressure [Max] Ball Valve

$20.83

Dimension A	46.6mm
Dimension H	31.0mm
Dimension I	90.0mm
Dimension L	48.0mm

Cv Coefficient	2.6
End Size	44263in
End Type	Female National Pipe Thread (NPT)
Inch/Metric	Inch
Operating Temperature [Max]	ºF
Operating Temperature [Min]	ºF
Orifice	7.5mm
Pressure Rating	69bar, 1000psig
Pressure [Max]	1000psi

Swagelok®	SS-

SBV210-F-6N-PE SBV210 Series Ball Valves

SBV 3/8 in. Female National Pipe Taper (FNPT) Thread, Peek Seats, -65 to 450 ºF Operating Temperature, 1000 psi Pressure [Max] Ball Valve

$27.97

Dimension A	46.6mm
Dimension H	31.0mm
Dimension I	90.0mm
Dimension L	48.0mm

Cv Coefficient	2.6
End Size	44263in
End Type	Female National Pipe Thread (NPT)
Inch/Metric	Inch
Operating Temperature [Max]	450ºF
Operating Temperature [Min]	-65ºF
Orifice	7.5mm
Pressure Rating	69bar, 1000psig
Pressure [Max]	1000psi

Swagelok®	SS-

SBV210-F-6N-PE-BH SBV210 Series Ball Valves

SBV 3/8 in. Female National Pipe Taper (FNPT) Thread, Lever Handle, Peek Seats, -65 to 450 ºF Operating Temperature, 1000 psi Pressure [Max] Ball Valve

$27.97

Dimension A	46.6mm
Dimension H	31.0mm
Dimension I	90.0mm
Dimension L	48.0mm

Cv Coefficient	2.6
End Size	44263in
End Type	Female National Pipe Thread (NPT)
Inch/Metric	Inch
Operating Temperature [Max]	450ºF
Operating Temperature [Min]	-65ºF
Orifice	7.5mm
Pressure Rating	69bar, 1000psig
Pressure [Max]	1000psi

Swagelok®	SS-

SBV210-F-8N SBV210 Series Ball Valves

SBV 1/2 in. Female National Pipe Taper (FNPT) Thread, Butterfly Handle, 1000 psi Pressure [Max] Ball Valve

$29.98

Dimension A	55.0mm
Dimension H	34.0mm
Dimension I	90.0mm
Dimension L	50.0mm

Cv Coefficient	9.5
End Size	44198in
End Type	Female National Pipe Thread (NPT)
Inch/Metric	Inch
Operating Temperature [Max]	ºF
Operating Temperature [Min]	ºF
Orifice	9.0mm
Pressure Rating	69bar, 1000psig
Pressure [Max]	1000psi

Swagelok®	SS-

SBV210-F-8N-BH SBV210 Series Ball Valves

SBV 1/2 in. Female National Pipe Taper (FNPT) Thread, Lever Handle, 1000 psi Pressure [Max] Ball Valve

$29.98

Dimension A	55.0mm
Dimension H	34.0mm
Dimension I	90.0mm
Dimension L	50.0mm

Cv Coefficient	9.5
End Size	44198in
End Type	Female National Pipe Thread (NPT)
Inch/Metric	Inch
Operating Temperature [Max]	ºF
Operating Temperature [Min]	ºF
Orifice	9.0mm
Pressure Rating	69bar, 1000psig
Pressure [Max]	1000psi

Swagelok®	SS-

SBV210-F-8N-PE SBV210 Series Ball Valves

SBV 1/2 in. Female National Pipe Taper (FNPT) Thread, Peek Seats, -65 to 450 ºF Operating Temperature, 1000 psi Pressure [Max] Ball Valve

$39.82

Dimension A	55.0mm
Dimension H	34.0mm
Dimension I	90.0mm
Dimension L	50.0mm

Cv Coefficient	9.5
End Size	44198in
End Type	Female National Pipe Thread (NPT)
Inch/Metric	Inch
Operating Temperature [Max]	450ºF
Operating Temperature [Min]	-65ºF
Orifice	9.0mm
Pressure Rating	69bar, 1000psig
Pressure [Max]	1000psi

Swagelok®	SS-

SBV210-F-8N-PE-BH SBV210 Series Ball Valves

SBV 1/2 in. Female National Pipe Taper (FNPT) Thread, Lever Handle, Peek Seats, -65 to 450 ºF Operating Temperature, 1000 psi Pressure [Max] Ball Valve

$39.82

Dimension A	55.0mm
Dimension H	34.0mm
Dimension I	90.0mm
Dimension L	50.0mm

Cv Coefficient	9.5
End Size	44198in
End Type	Female National Pipe Thread (NPT)
Inch/Metric	Inch
Operating Temperature [Max]	450ºF
Operating Temperature [Min]	-65ºF
Orifice	9.0mm
Pressure Rating	69bar, 1000psig
Pressure [Max]	1000psi

Swagelok®	SS-

SBV210-F-12N SBV210 Series Ball Valves

SBV 3/4 in. Female National Pipe Taper (FNPT) Thread, Butterfly Handle, 1000 psi Pressure [Max] Ball Valve

$51.01

Dimension A	61.3mm
Dimension H	39.0mm
Dimension I	100.0mm
Dimension L	55.0mm

Cv Coefficient	12.7
End Size	44259in
End Type	Female National Pipe Thread (NPT)
Inch/Metric	Inch
Operating Temperature [Max]	ºF
Operating Temperature [Min]	ºF
Orifice	12.5mm
Pressure Rating	69bar, 1000psig
Pressure [Max]	1000psi

Swagelok®	SS-

SBV210-F-12N-BH SBV210 Series Ball Valves

SBV 3/4 in. Female National Pipe Taper (FNPT) Thread, Lever Handle, 1000 psi Pressure [Max] Ball Valve

$51.01

Dimension A	61.3mm
Dimension H	39.0mm
Dimension I	100.0mm
Dimension L	55.0mm

Cv Coefficient	12.7
End Size	44259in
End Type	Female National Pipe Thread (NPT)
Inch/Metric	Inch
Operating Temperature [Max]	ºF
Operating Temperature [Min]	ºF
Orifice	12.5mm
Pressure Rating	69bar, 1000psig
Pressure [Max]	1000psi

Swagelok®	SS-

SBV210-F-16N SBV210 Series Ball Valves

SBV 1 in. Female National Pipe Taper (FNPT) Thread, Butterfly Handle, 1000 psi Pressure [Max] Ball Valve

$65.84

Dimension A	76.0mm
Dimension H	45.0mm
Dimension I	100.0mm
Dimension L	68.0mm

Cv Coefficient	17.5
End Size	1in
End Type	Female National Pipe Thread (NPT)
Inch/Metric	Inch
Operating Temperature [Max]	ºF
Operating Temperature [Min]	ºF
Orifice	16.0mm
Pressure Rating	69bar, 1000psig
Pressure [Max]	1000psi

Swagelok®	SS-

SBV210-F-16N-BH SBV210 Series Ball Valves

SBV 1 in. Female National Pipe Taper (FNPT) Thread, Lever Handle, 1000 psi Pressure [Max] Ball Valve

$65.84

Dimension A	76.0mm
Dimension H	45.0mm
Dimension I	100.0mm
Dimension L	68.0mm

Cv Coefficient	17.5
End Size	1in
End Type	Female National Pipe Thread (NPT)
Inch/Metric	Inch
Operating Temperature [Max]	ºF
Operating Temperature [Min]	ºF
Orifice	16.0mm
Pressure Rating	69bar, 1000psig
Pressure [Max]	1000psi

Swagelok®	SS-

SBV210-S-4 SBV210 Series Ball Valves

SBV 1/4 in. Tube Outside Diameter D, Butterfly Handle, 1000 psi Pressure [Max] Ball Valve

$37.22

Dimension A	79.8mm
Dimension H	23.0mm
Dimension I	60.0mm
Dimension L	30.0mm

SBV210-S-4-BH SBV210 Series Ball Valves

SBV 1/4 in. Tube Outside Diameter D, Lever Handle, 1000 psi Pressure [Max] Ball Valve

$37.22

SBV210-S-4-PE-BH SBV210 Series Ball Valves

SBV 1/4 in. Tube Outside Diameter D, Lever Handle, Peek Seats, -65 to 450 ºF Operating Temperature, 1000 psi Pressure [Max] Ball Valve

$48.25

SBV210-S-6 SBV210 Series Ball Valves

SBV 3/8 in. Tube Outside Diameter D, Butterfly Handle, 1000 psi Pressure [Max] Ball Valve

$44.75

SBV210-S-6-BH SBV210 Series Ball Valves

SBV 3/8 in. Tube Outside Diameter D, Lever Handle, 1000 psi Pressure [Max] Ball Valve

$44.75

SBV210-S-6-PE-BH SBV210 Series Ball Valves

SBV 3/8 in. Tube Outside Diameter D, Lever Handle, Peek Seats, -65 to 450 ºF Operating Temperature , 1000 psi Pressure [Max] Ball Valve

$58.30

SBV210-S-8 SBV210 Series Ball Valves

SBV 1/2 in. Tube Outside Diameter D, Butterfly Handle, 1000 psi Pressure [Max] Ball Valve

$57.08

SBV210-S-8-BH SBV210 Series Ball Valves

SBV 1/2 in. Tube Outside Diameter D, Lever Handle, 1000 psi Pressure [Max] Ball Valve

$57.08

SBV210-S-8-PE-BH SBV210 Series Ball Valves

SBV 1/2 in. Tube Outside Diameter D, Lever Handle, Peek Seats, -65 to 450 ºF Operating Temperature, 1000 psi Pressure [Max] Ball Valve

$76.13

SBV210-S-10-BH SBV210 Series Ball Valves

SBV 5/8 in. Tube Outside Diameter D, Lever Handle, 1000 psi Pressure [Max] Ball Valve

$91.39

SBV210-S-12 SBV210 Series Ball Valves

SBV 3/4 in. Tube Outside Diameter D, Butterfly Handle, 1000 psi Pressure [Max] Ball Valve

$91.97

SBV210-S-12-BH SBV210 Series Ball Valves

SBV 3/4 in. Tube Outside Diameter D, Lever Handle, 1000 psi Pressure [Max] Ball Valve

$91.97

SBV210-S-12-PE-BH SBV210 Series Ball Valves

SBV 3/4 in. Tube Outside Diameter D, Lever Handle, Peek Seats, -65 to 450 ºF Operating Temperature, 1000 psi Pressure [Max] Ball Valve

$122.42

SBV210-S-16-BH SBV210 Series Ball Valves

SBV 1 in. Tube Outside Diameter D, Lever Handle, 1000 psi Pressure [Max] Ball Valve

$139.21

SBV210-S-16-PE-BH SBV210 Series Ball Valves

SBV 1 in. Tube Outside Diameter D, Lever Handle, Peek Seats, -65 to 450 ºF Operating Temperature, 1000 psi Pressure [Max] Ball Valve

$184.84

SBVT210-S-6-BH SBV210 Series Ball Valves

SBV T-Type, 3/8 in. Tube Outside Diameter D, Lever Handle, 1000 psi Pressure [Max] Ball Valve

$87.33

Cv Coefficient	1.25
End Size	44200in
End Type	Array
Inch/Metric	Inch
Operating Temperature [Max]	ºF
Operating Temperature [Min]	ºF
Orifice	5.0mm
Pressure Rating	69bar, 1000psig
Pressure [Max]	1000psi

Dimension A	91.5mm
Dimension H	31.0mm
Dimension I	90.0mm
Dimension L	48.0mm

Dimension A	101.4mm
Dimension H	34.0mm
Dimension I	90.0mm
Dimension L	48.0mm

Dimension A	107.0mm
Dimension H	39.0mm
Dimension I	100.0mm
Dimension L	55.0mm

Cv Coefficient	10.6
End Size	44324in
End Type	Array
Inch/Metric	Inch
Operating Temperature [Max]	ºF
Operating Temperature [Min]	ºF
Orifice	12.5mm
Pressure Rating	69bar, 1000psig
Pressure [Max]	1000psi

Dimension A	131.0mm
Dimension H	45.0mm
Dimension I	100.0mm
Dimension L	68.0mm

Dimension A	77.5mm
Dimension H	31.0mm
Dimension I	mm
Dimension L	mm
