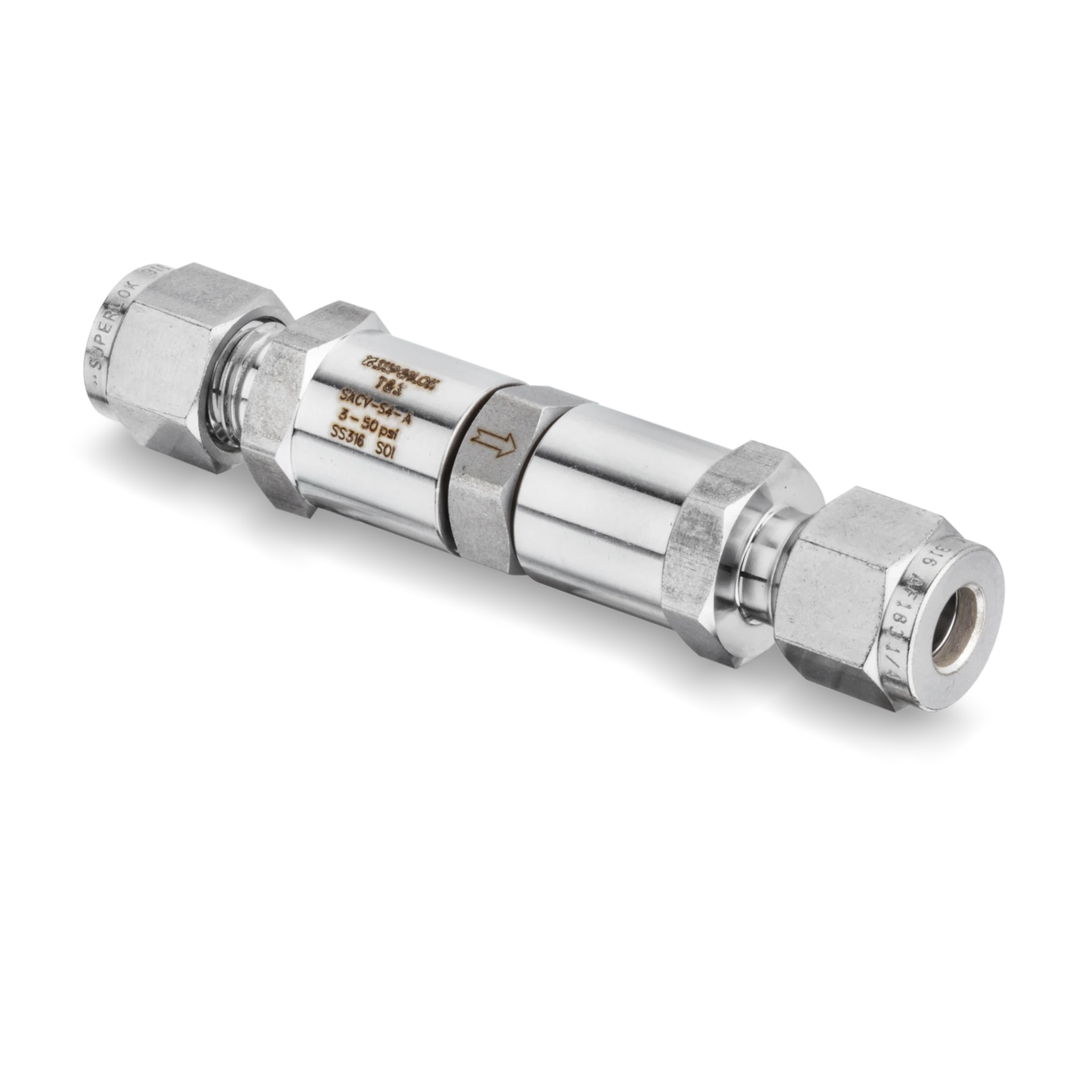

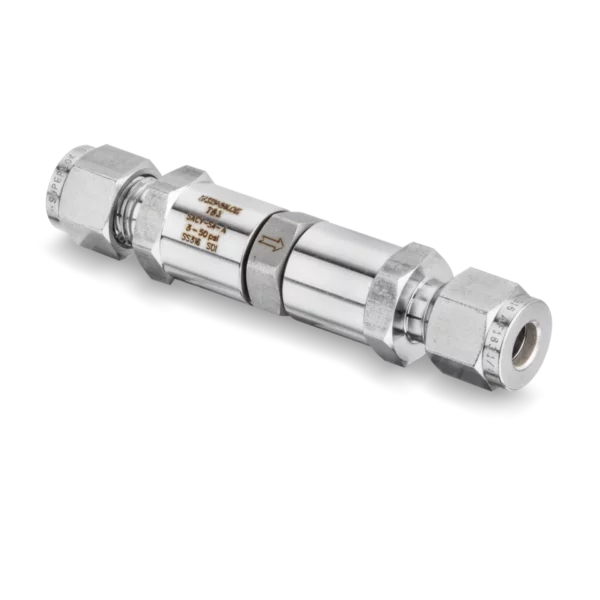

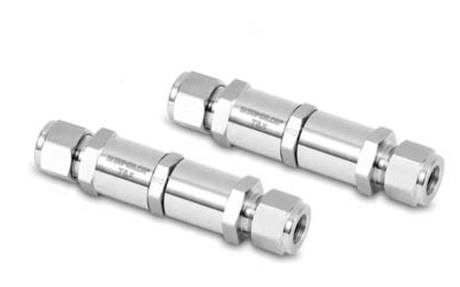

SACV Adjustable Check Valves
SACV Adjustable Check Valves
Add any item to your quote and we’ll get back to you with a price. Discounts apply for larger quantities, so the more you need, the better the rate. We’ll always get you the best possible price based on your volume.
See individual part details below
Access our SACV adjustable check valves designed for high-pressure applications up to 6,000 psig. This features 316 stainless steel construction and FKM seals for temperatures to 375°F for your fluid system. Browse below to request quotes for this factory-tested adjustable check valve.
Looking for Swagelok® alternatives? Enter a part number in our search to find compatible alternatives.
Specifications
| Back Pressure at 70 (20 ºC) Temperature | 206bar, 3000psig |
|---|---|
| Cracking Pressure | 0.2 to 3.4bar, 3 to 50psi |
| Cv Coefficient | 0.37 |
| Inch/Metric | Inch |
| Inlet | 1/4mm |
| Operating Pressure [Min] | 206bar, 3000psig |
| Outlet | 1/4mm |
| Superlok Part Type | Check Valve |
| Temperature Rating for Fluorocarbon (FKM) | -23 to 190ºC, -10 to 375ºF |
| Temperature Rating for Nitrile Butadiene Rubber | -23 to 121ºC, -10 to 250ºF |
Available Sizes
SACV1-S-4-A SACV Adjustable Check Valves
