SPCV Check Valves
SPCV Check Valves
Price range: $48.23 through $99.50
Add any item to your quote and we’ll get back to you with a price. Discounts apply for larger quantities, so the more you need, the better the rate. We’ll always get you the best possible price based on your volume.
See individual part details below

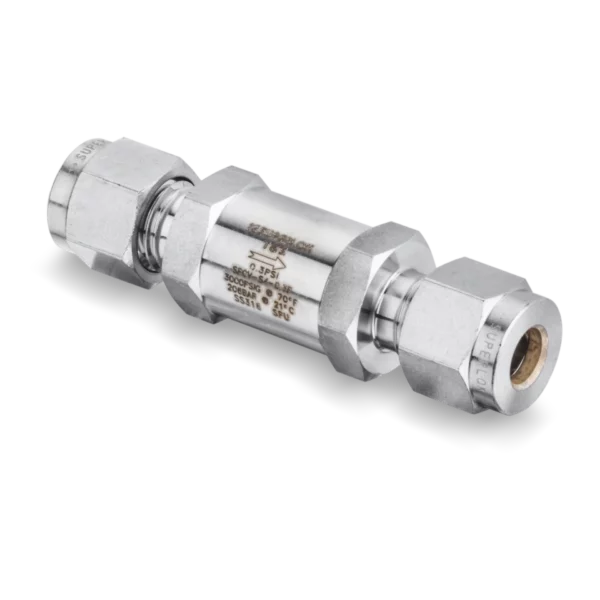

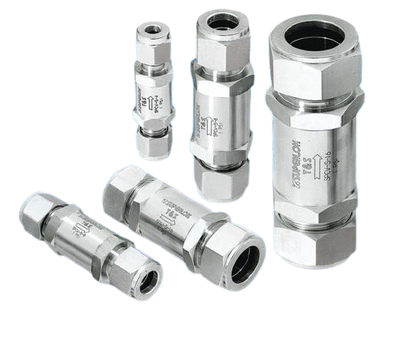

Access our complete line of SPCV Check Valves featuring fixed cracking pressure designs. Our selection includes valves rated up to 3000 psig at 70°F with Fluorocarbon (FKM) o-ring variety of end connections for your fluid system. Browse below to instantly request a quote or purchase the check valves that are factory tested for reliability.
Looking for Swagelok® alternatives? Enter a part number in our search to find compatible alternatives.
Specifications
| Inch/Metric | Inch |
|---|---|
| Superlok Part Type | Check Valve |
| Temperature Rating for Buna N | -23 to 121ºC, -10 to 250ºF |
| Temperature Rating for Ethylene Propylene | -57 to 121ºC, -70 to 250ºF |
| Temperature Rating for Fluorocarbon (FKM) | -23 to 190ºC, -10 to 375ºF |
| Temperature Rating for Kalrez | -26 to 260ºC, -15 to 500ºF |
| Temperature Rating for Neoprene | -37 to 107ºC, -35 to 225ºF |
Available Sizes
SPCV-F-4N-1P SPCV Check Valves
SPCV 1/4 in. Female National Pipe Taper (FNPT), #1 psi Nominal Cracking Pressure Spring, 3000 psi Working Pressure Check Valve
$52.58
SPCV-S-2-1P SPCV Check Valves
SPCV 1/8 in. Tube Outside Diameter D #1 psi Nominal Cracking Pressure Spring, 3000 psi Working Pressure Check Valve
$58.77
SPCV-S-2-3P SPCV Check Valves
SPCV 1/8 in. Tube Outside Diameter D, #3 psi Nominal Cracking Pressure Spring, 3000 psi Working Pressure Check Valve
$58.77
SPCV-S-4-1/3 SPCV Check Valves
SPCV 1/4 in. Tube Outside Diameter D, #1/3 psi Nominal Cracking Pressure Spring, 3000 psi Working Pressure Check Valve
$48.23
SPCV-S-4-1P SPCV Check Valves
SPCV 1/4 in. Tube Outside Diameter D, #1 psi Nominal Cracking Pressure Spring, 3000 psi Working Pressure Check Valve
$48.23
SPCV-S-4-3P SPCV Check Valves
SPCV 1/4 in. Tube Outside Diameter D, #3 psi Nominal Cracking Pressure Spring, 3000 psi Working Pressure Check Valve
$48.23
SPCV-S-4-5P SPCV Check Valves
SPCV 1/4 in. Tube Outside Diameter D, #5 psi Nominal Cracking Pressure Spring, 3000 psi Working Pressure Check Valve
$48.23
SPCV-S-4-10P SPCV Check Valves
SPCV 1/4 in. Tube Outside Diameter D, #10 psi Nominal Cracking Pressure Spring, 3000 psi Working Pressure Check Valve
$48.23
SPCV-S-4-25P SPCV Check Valves
SPCV 1/4 in. Tube Outside Diameter D, #25 psi Nominal Cracking Pressure Spring, 3000 psi Working Pressure Check Valve
$48.23
SPCV-S-6-1/3P SPCV Check Valves
SPCV 3/8 in. Tube Outside Diameter D, #1/3 psi Nominal Cracking Pressure Spring, 3000 psi Working Pressure Check Valve
$88.58
SPCV-S-6-1P SPCV Check Valves
SPCV 3/8 in. Tube Outside Diameter D, #1 psi Nominal Cracking Pressure Spring, 3000 psi Working Pressure Check Valve
$88.58
SPCV-S-6-10P SPCV Check Valves
SPCV 3/8 in. Tube Outside Diameter D, #10 psi Nominal Cracking Pressure Spring, 3000 psi Working Pressure Check Valve
$88.58
SPCV-S-6-25P SPCV Check Valves
SPCV 3/8 in. Tube Outside Diameter D, #25 psi Nominal Cracking Pressure Spring, 3000 psi Working Pressure Check Valve
$88.58
SPCV-S-8-1/3P SPCV Check Valves
SPCV 1/2 in. Tube Outside Diameter D, #1/3 psi Nominal Cracking Pressure Spring, 3000 psi Working Pressure Check Valve
$99.50
SPCV-S-8-1P SPCV Check Valves
SPCV 1/2 in. Tube Outside Diameter D, #1 psi Nominal Cracking Pressure Spring, 3000 psi Working Pressure Check Valve
$99.50
SPCV-S-8-10P SPCV Check Valves
SPCV 1/2 in. Tube Outside Diameter D, #10 psi Nominal Cracking Pressure Spring, 3000 psi Working Pressure Check Valve
$99.50
SPCV-S-8-25P SPCV Check Valves
SPCV 1/2 in. Tube Outside Diameter D, #25 psi Nominal Cracking Pressure Spring, 3000 psi Working Pressure Check Valve
$99.50
