SM2V 2-Valve Manifold Valves
SM2V 2-Valve Manifold Valves
Price range: $199.00 through $248.75
Add any item to your quote and we’ll get back to you with a price. Discounts apply for larger quantities, so the more you need, the better the rate. We’ll always get you the best possible price based on your volume.
See individual part details below

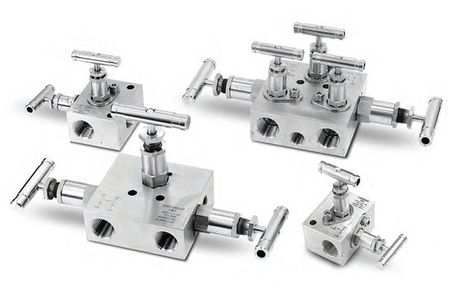

Access our complete line of 2 valve manifold series rated for 6000 psig applications. These high-pressure manifold 2 valve configurations feature stainless steel construction. Browse below to explore our designs or request a quote options.
Looking for Swagelok® alternatives? Enter a part number in our search to find compatible alternatives.
Specifications
| Inch/Metric | Inch |
|---|---|
| Orifice | 0.125in, 3.2mm |
| Superlok Part Type | Manifold Valve |
Available Sizes
SM2V-F-8N SM2V 2-Valve Manifold Valves
SM2V 1/2 in. Female National Pipe Taper (FNPT) Thread, Horizontal Style, Remote Mount, 6000 psi Pressure Rating Valve Manifold Valve
$199.00
SM2V-F-8N-G SM2V 2-Valve Manifold Valves
SM2V 1/2 in. Female National Pipe Taper (FNPT) Thread, Grafoil Packaging, Remote Mount, 6000 psi Pressure Rating Valve Manifold Valve
$210.89
SM2VD-F-8N SM2V 2-Valve Manifold Valves
SM2V 1/2 in. Female National Pipe Taper (FNPT) Thread x Flange, Vertical Style, Direct Mount, 6000 psi Pressure Rating Valve Manifold Valve
$248.75
SM2VF-F-8N-G SM2V 2-Valve Manifold Valves
SM2V 1/2 in. Female National Pipe Taper (FNPT) Thread x Flange, Grafoil Packaging, Direct Mount, 6000 psi Pressure Rating Valve Manifold Valve
$248.75
