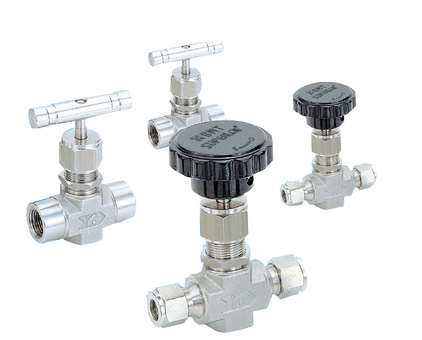

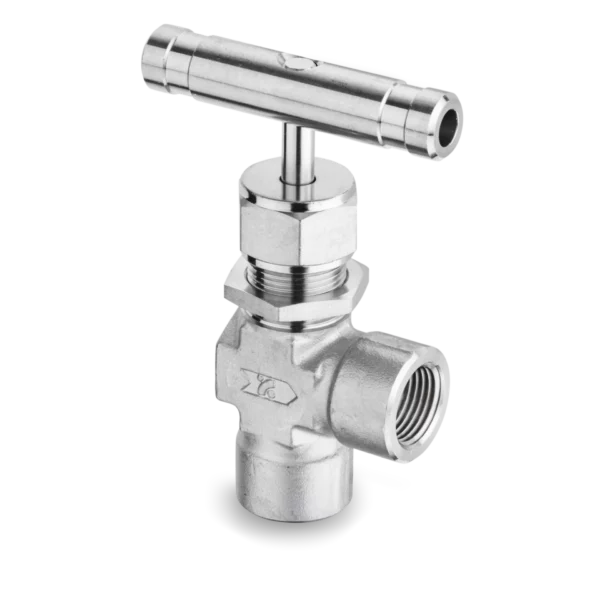

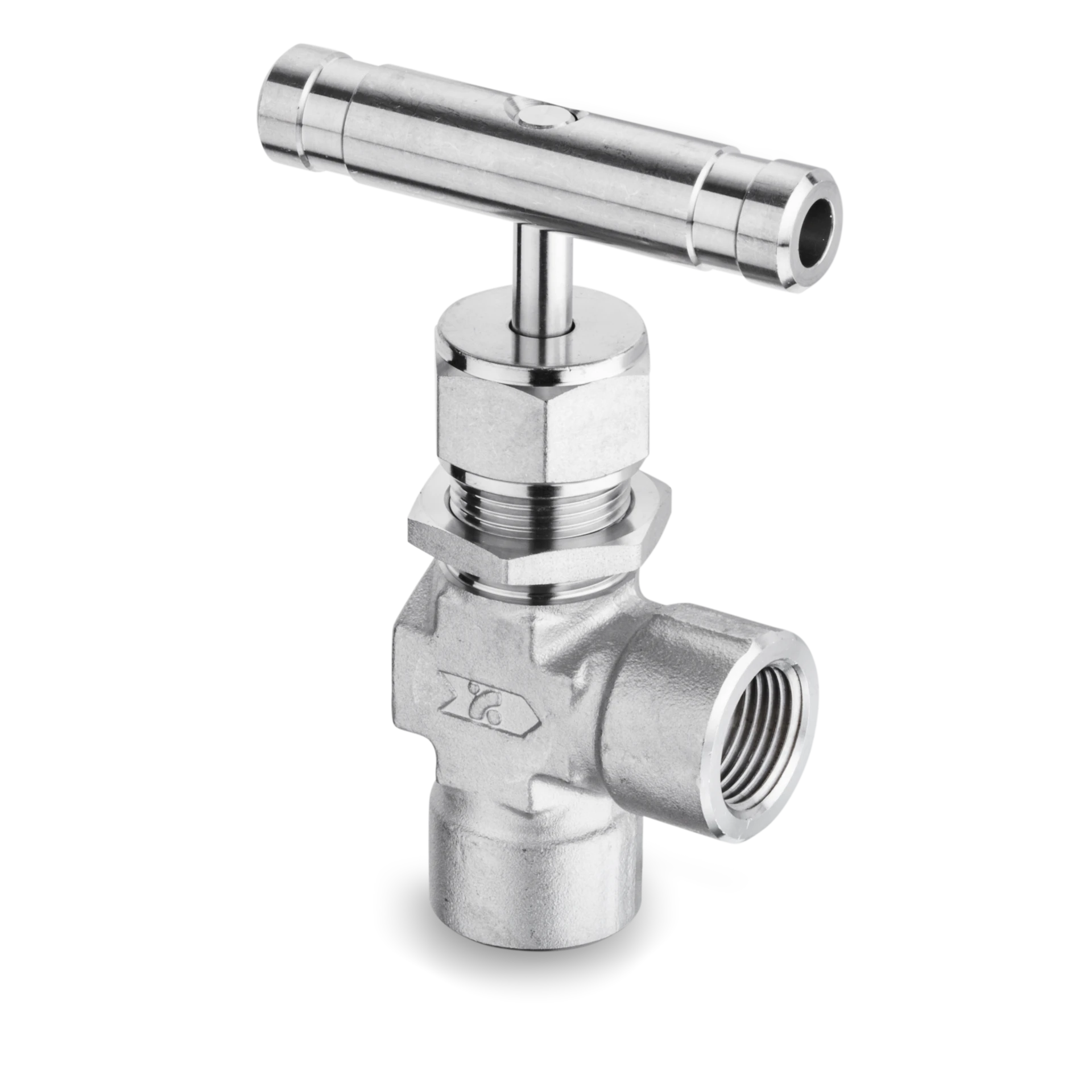

SINV Needle Valves
$88.68 – $248.75
See individual part details below
Access our SINV integral bonnet needle valve series featuring low-torque operation. Our selection of integral bonnet needle valves includes straight and angle patterns for your fluid system. Browse below to request a quote for the component you need.
Looking for Swagelok® alternatives? Enter a part number in our search to find compatible alternatives.

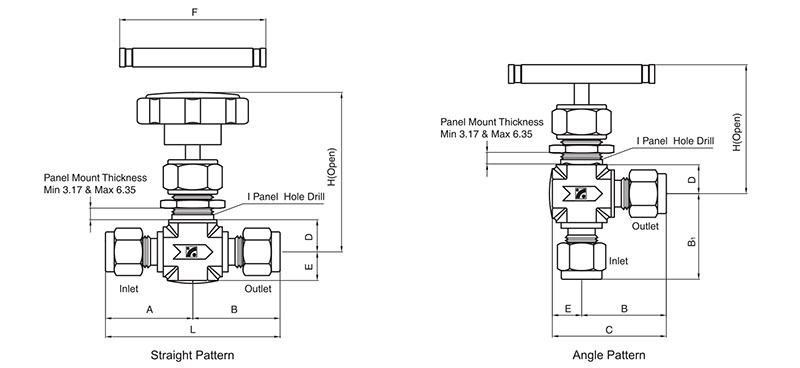

Compact design Low operating torques Panel mountable Variety of stem tips Variety of End Connections Straight and Angle flow patterns Each and every valve is tested at the factory
| Inch/Metric | Inch |
|---|---|
| Pressure Rating at 100 (38 ºC) Temperature | 345bar, 5000psig |
| Superlok Part Type | Needle Valve |
| Temperature Rating with Polyether Ether Ketone (PEEK) Packing | 315ºC, 600ºF |
| Temperature Rating with Polytetrafluoroethylene (PTFE) Packing | -54 to 232ºC, -65 to 450ºF |
SINV Needle Valves SINV3-S-6-RS
SINV 3/8 in. Outside Diameter, Regulating Stem, Bar Handle, 5000 psi Pressure Rating Needle Valve
SINV Needle Valves SINV3-S-6-RS-KH
SINV Needle Valves SINV3-S-6-RS-MR
SINV Needle Valves SINV3-S-8-RS
SINV 1/2 in. Outside Diameter, Regulating Stem, Bar Handle, 5000 psi Pressure Rating Needle Valve
SINV Needle Valves SINV4-F-8N-RS
SINV Needle Valves SINV4-MF-8N-RS
SINV Needle Valves SINV4-S-8-RS
SINV Needle Valves SINV4-S-8-RS-KH-A-PE
SINV Needle Valves SINV4-S-8-RS-KH-PE
