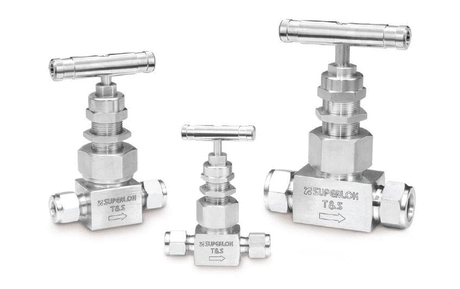

SUNV Union Bonnet Needle Valves
SUNV Union Bonnet Needle Valves
Price range: $129.78 through $465.05
Add any item to your quote and we’ll get back to you with a price. Discounts apply for larger quantities, so the more you need, the better the rate. We’ll always get you the best possible price based on your volume.
See individual part details below
Access our SUNV union bonnet needle valve featuring low-torque, panel-mountable design. Our precision union bonnet needle valves offer straight and angle flow patterns for your fluid system. Browse below to request a quote for your component below.
Looking for Swagelok® alternatives? Enter a part number in our search to find compatible alternatives.
Specifications
| Inch/Metric | Inch |
|---|---|
| Superlok Part Type | Needle Valve |
| Temperature Rating with Graphite Packing | -53 to 648ºC, -65 to 1200ºF |
| Temperature Rating with Polychlorotrifluoroethylene (PCTFE) Stem Tip | -53 to 93ºC, -65 to 200ºF |
| Temperature Rating with Polyether Ether Ketone (PEEK) Packing | -53 to 315ºC, -65 to 600ºF |
Available Sizes
SUNV1-F-4N SUNV Union Bonnet Needle Valves
SUNV 1/4 in. Female National Pipe Taper (FNPT) Thread, Polytetrafluoroethylene (PTFE) Packing, Bar Handle, 6000 psi Pressure Rating Union Bonnet Needle Valve
$129.78
SUNV1-F-4N-GR SUNV Union Bonnet Needle Valves
SUNV 1/4 in. Female National Pipe Taper (FNPT) Thread, Grafoil Packing, Bar Handle, 6000 psi Pressure Rating Union Bonnet Needle Valve
$136.25
SUNV1-S-4 SUNV Union Bonnet Needle Valves
SUNV 1/4 in. Outside Diameter, Polytetrafluoroethylene (PTFE) Packing, 6000 psi Pressure Rating Union Bonnet Needle Valve
$138.43
SUNV1-S-4-GR SUNV Union Bonnet Needle Valves
SUNV 1/4 in. Outside Diameter, Grafoil Packing, 6000 psi Pressure Rating Union Bonnet Needle Valve
$143.84
SUNV2-S-6 SUNV Union Bonnet Needle Valves
SUNV 3/8 in. Outside Diameter, Polytetrafluoroethylene (PTFE) Packing, 6000 psi Pressure Rating Union Bonnet Needle Valve
$192.72
SUNV2-S-6-GR SUNV Union Bonnet Needle Valves
SUNV 3/8 in. Outside Diameter, Grafoil Packing, 6000 psi Pressure Rating Union Bonnet Needle Valve
$199.00
SUNV2-S-8 SUNV Union Bonnet Needle Valves
SUNV 1/2 in. Outside Diameter, Polytetrafluoroethylene (PTFE) Packing, 6000 psi Pressure Rating Union Bonnet Needle Valve
$205.05
SUNV2-S-8-GR SUNV Union Bonnet Needle Valves
SUNV 1/2 in. Outside Diameter, Grafoil Packing, 6000 psi Pressure Rating Union Bonnet Needle Valve
$215.87
SUNV3-F-8N SUNV Union Bonnet Needle Valves
SUNV 1/2 in. Female National Pipe Taper (FNPT) Thread, Polytetrafluoroethylene (PTFE) Packing, Bar Handle, 6000 psi Pressure Rating Union Bonnet Needle Valve
$281.19
SUNV3-F-8N-GR SUNV Union Bonnet Needle Valves
SUNV 1/2 in. Female National Pipe Taper (FNPT) Thread, Grafoil Packing, Bar Handle, 6000 psi Pressure Rating Union Bonnet Needle Valve
$287.37
SUNV3-F-12N SUNV Union Bonnet Needle Valves
SUNV 3/4 in. Female National Pipe Taper (FNPT) Thread, Polytetrafluoroethylene (PTFE) Packing, Bar Handle, 6000 psi Pressure Rating Union Bonnet Needle Valve
$415.30
SUNV3-F-16N SUNV Union Bonnet Needle Valves
SUNV 1 in. Female National Pipe Taper (FNPT) Thread, Polytetrafluoroethylene (PTFE) Packing, Bar Handle, 6000 psi Pressure Rating Union Bonnet Needle Valve
$465.05
SUNV3-MF-8N SUNV Union Bonnet Needle Valves
SUNV 1/2 in. Male National Pipe Taper (MNPT) Thread x 1/2 in. Female National Pipe Taper (FNPT) Thread, Polytetrafluoroethylene (PTFE) Packing, 6000 psi Pressure Rating Union Bonnet Needle Valve
$302.82
SUNV3-MF-12N SUNV Union Bonnet Needle Valves
SUNV 3/4 in. Male National Pipe Taper (MNPT) Thread x 3/4 in. Female National Pipe Taper (FNPT) Thread, Polytetrafluoroethylene (PTFE) Packing, 6000 psi Pressure Rating Union Bonnet Needle Valve
$427.79
SUNV3-S-8-PE SUNV Union Bonnet Needle Valves
SUNV 1/2 in. Outside Diameter, Peek Packing, -65 to 600 ºF Temperature Rating, 6000 psi Union Bonnet Needle Valve
Price range: $129.78 through $465.05
Add any item to your quote and we’ll get back to you with a price. Discounts apply for larger quantities, so the more you need, the better the rate. We’ll always get you the best possible price based on your volume.
SUNV3-S-16 SUNV Union Bonnet Needle Valves
SUNV 1 in. Outside Diameter, Polytetrafluoroethylene (PTFE) Packing, 6000 psi Pressure Rating Union Bonnet Needle Valve
$346.08
