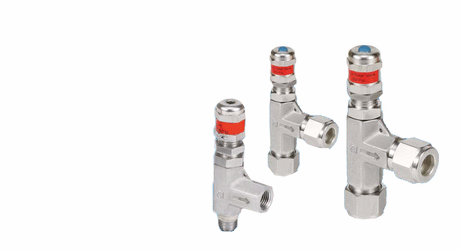

SRVL Low Pressure Relief Valves
Print Page
SRVL-MF-8N
SRVL-MF-8N - Image 2
SRVL-MF-8N - Image 3

SRVL-MF-8N

SRVL 1/2 in. Male National Pipe Taper (MNPT) Thread x Female National Pipe Taper (FNPT) Thread, 300 psi Low Pressure Relief Valve

Add any item to your quote and we’ll get back to you with a price. Discounts apply for larger quantities, so the more you need, the better the rate. We’ll always get you the best possible price based on your volume.
SKU: SRVL-MF-8N Category: Tag:
Click here for more info
Add to quote
Specifications
Cracking Pressure Range 0.69 to 17.2bar, 10.0 to 250psig
End Size 44198mm
End Size 2 44198mm
End Type Male National Pipe Thread (NPT)
End Type 2 Female National Pipe Thread (NPT)
Inch/Metric Inch
Operating Pressure [Max] 20.6bar, 300psig
Orifice 4.8mm
Dimensions
SRVL-MF-8N
Dimension H 103.0mm
Dimension L1 38.0mm
Dimension L2 35.7mm
Description

(SRVL-MF-8N)

Stainless Steel Relief Valve – 1/2" MNPT x 1/2" FNPT | 300 PSI | Adjustable Cracking Pressure

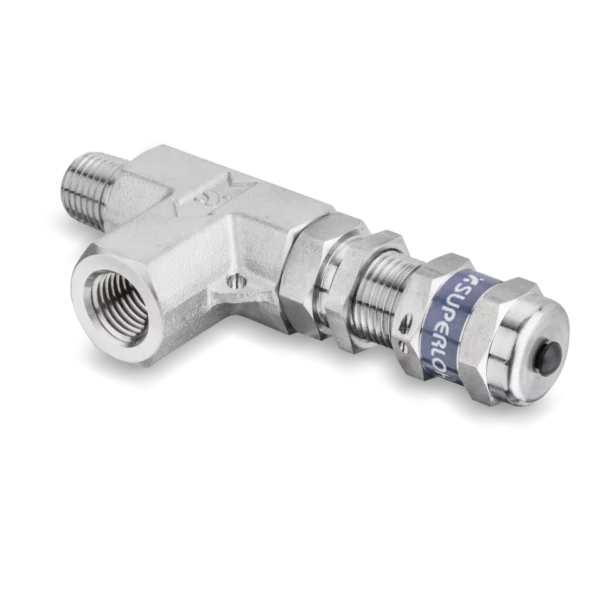

The SRVL-MF-8N is a low-pressure relief valve featuring a 1/2" Male NPT x 1/2" Female NPT connection and a compact, factory-tested design. Built from 316 stainless steel, this valve provides reliable overpressure protection with an externally adjustable cracking pressure range from 10 to 250 PSIG (0.69 to 17.2 bar). Ideal for precise fluid control in instrumentation, sanitary systems, and pressure-sensitive applications.

● Material: 316 Stainless Steel
● Cracking Pressure Range: 10 to 250 PSIG
● Max Operating Pressure: 300 PSIG
● End Connections: 1/2" MNPT x 1/2" FNPT
● Applications: Pressure systems, hygienic fluid processors, gas skids, sampling loops, clean-in-place instrumentation

Each unit includes a lock wire feature to secure pressure settings during operation and is validated through 100% testing. The SRVL series is compatible with Swagelok-style relief valves, built for use in regulated systems where safety, responsiveness, and durability are non-negotiable.
