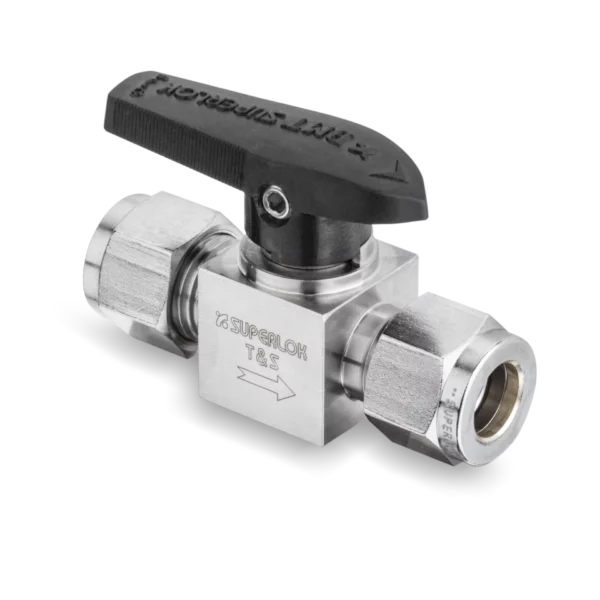

SPV131-S-4

SPV 1/4 in. Tube Outside Diameter D, 3000 psi Pressure Rating Inlet Plug Valve

Add any item to your quote and we’ll get back to you with a price. Discounts apply for larger quantities, so the more you need, the better the rate. We’ll always get you the best possible price based on your volume.
SKU: SPV131-S-4 Category: Tag:
Click here for more info
Add to quote
Specifications
Cv Coefficient 1.6
End Size 44200mm
End Size 2 44200mm
Inch/Metric Inch
Operating Temperature [Max] 204ºC, 400ºF
Operating Temperature [Min] -23ºC, -10ºF
Orifice 4.4mm
Pressure Rating Stainless Steel at 250 (121 ºC) Temperature 137bar, 2000psig
Pressure Rating Stainless Steel at 300 (148 ºC) Temperature 68.9bar, 1000psig
Pressure Rating Stainless Steel at 350 (176 ºC) Temperature 68.9bar, 1000psig
Pressure Rating Stainless Steel at 400 (204 ºC) Temperature 68.9bar, 1000psig
Temperature -53 to 37,93,121,148,176,204ºC, -65 to 100,200,250,300,350,400ºF
Working Pressure at 65 (-53 ºC) to 100 (37 ºC) Temperature 206bar, 3000psig
Working Pressure at 200 (93 ºC) Temperature 206bar, 3000psig

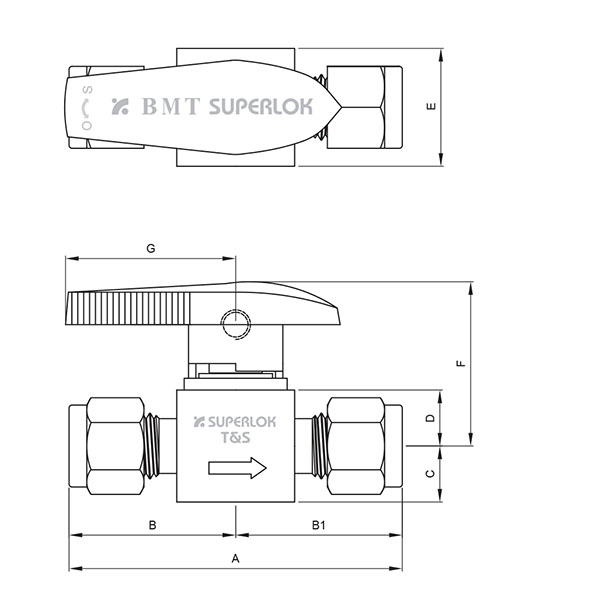

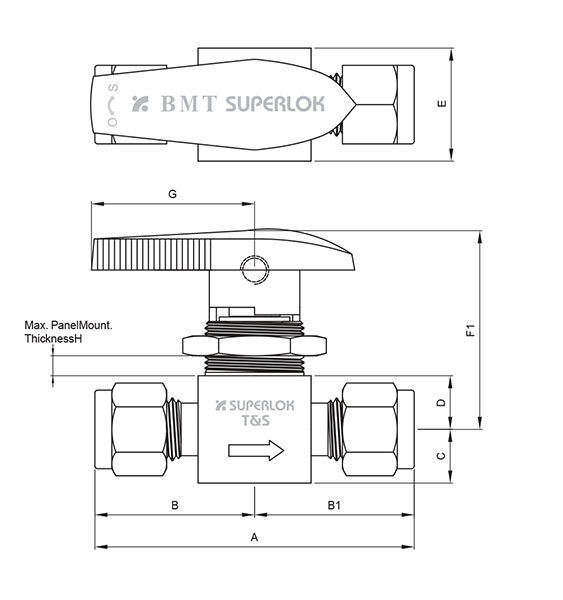

Dimensions
SPV131-S-4
Dimension A 55.1mm
Dimension B 27.6mm
Dimension B1 27.6mm
Dimension C 9.5mm
Dimension D 9.5mm
Dimension E 20.0mm
Dimension F 27.9mm
Dimension F1 35.5mm
Dimension G 28.9mm
Dimension H 6.4mm
Description

(SPV131-S-4)

Stainless Steel Plug Valve – 1/4 in. Tube OD, 3000 psi Inlet Pressure (SPV131-S-4)

The SPV131-S-4 is a compact inlet plug valve constructed from 316 stainless steel, engineered to deliver reliable sealing performance in pressure systems up to 3000 psig (206 bar). Designed with a one-piece body and a Cv of 1.6, this valve ensures smooth flow and minimal leakage across a wide temperature range from -10 °F to 400 °F.

Its all-stainless steel body and precision-machined internals make it ideal for sanitary environments requiring hygienic valves, corrosion-resistant alloys, and precise fluid control. Whether you’re operating in food processing, analytical instrumentation, or clean-in-place systems, this valve handles demanding system conditions with ease.

  • Connection Type: 1/4 in. Tube OD Inlet
  • Material: 316 Stainless Steel – corrosion-resistant and pressure-rated
  • Design: One-piece body with manual plug operation

Applications

– Instrumentation isolation in hygienic fluid processors
– Clean-in-place instrumentation and sampling loops
– Chemical dosing systems
– OEM valve blocks and sanitary stainless steel fittings

Need a leak-tight, stainless steel inlet plug valve for precision flow control? Add the SPV131-S-4 to your quote or cart today.
