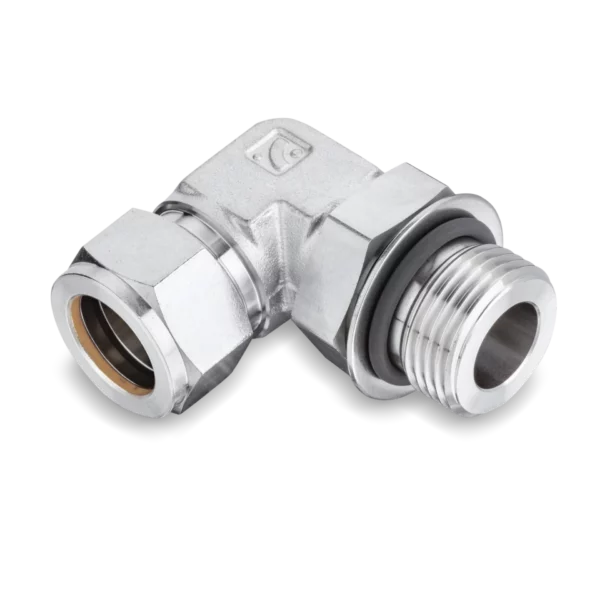

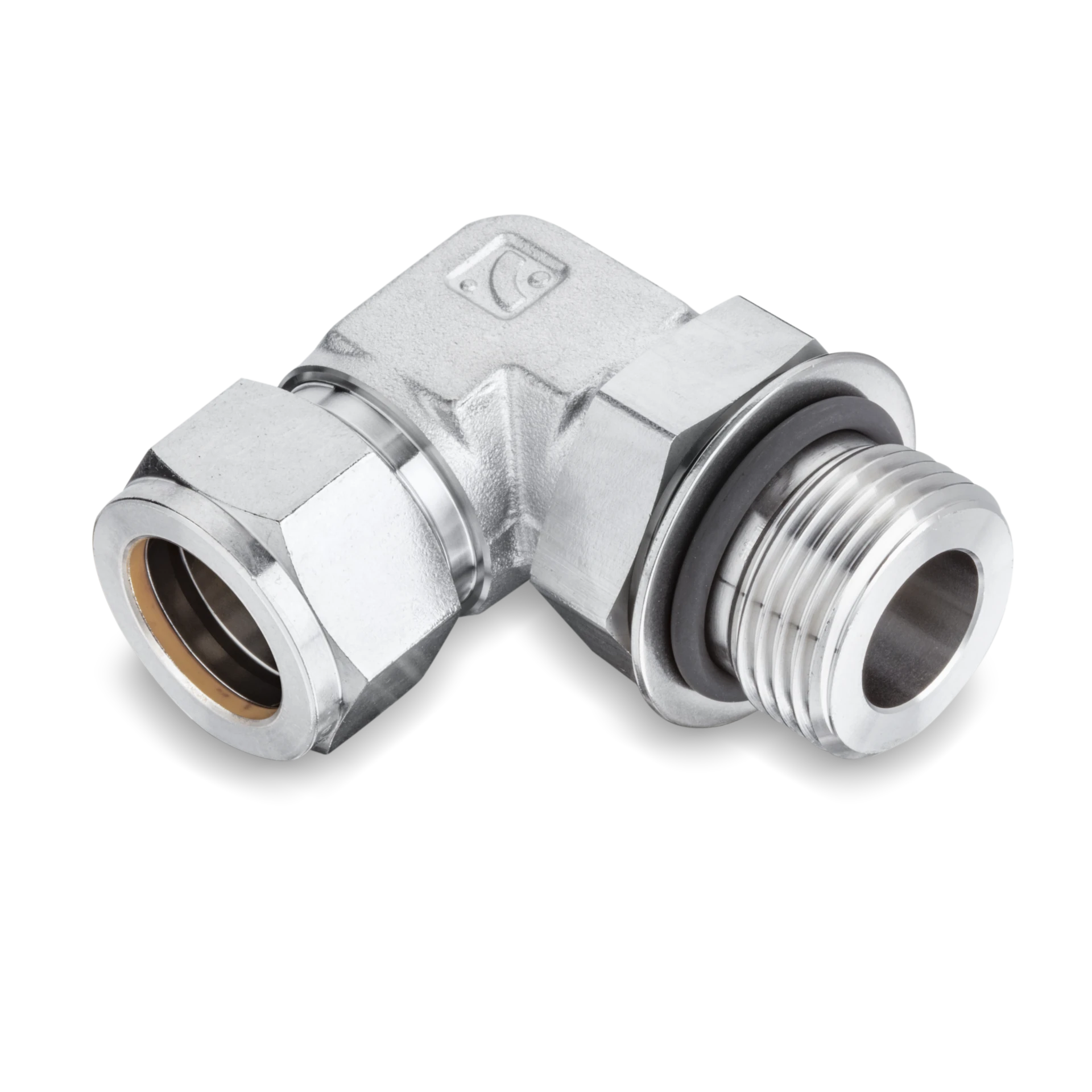

SPME Positionable 90 Degree Male Elbows
$20.05 – $255.50
See individual part details below
Access our complete line of SPME Positionable 90 Degree Male Elbows featuring precision-engineered designs. Our selection includes durable stainless steel elbows with 90-degree angle configurations for your fluid system. Browse below to instantly request a quote or purchase the positionable male elbows with industrial-grade construction.
Looking for Swagelok® alternatives? Enter a part number in our search to find compatible alternatives.
Positionable 90° Male Elbows – SAE / BSPP Thread x Tube OD | Superlok SPME Series
The SPME Series Positionable 90 Degree Male Elbows are precision-engineered for high-pressure fuel and fluid systems requiring flexible orientation, leak-tight sealing, and rugged durability. With one end configured as a tube compression fitting and the other as a male thread (SAE or BSPP), these elbows offer both adaptability and performance in space-constrained, mission-critical layouts.
Designed for use in alternative fuel systems, including hydrogen, CNG, propane, and other compressed gases, these elbows feature a positionable design that allows precise directional alignment during installation—critical for maintaining clean flow paths in OEM assemblies, instrumentation panels, or sanitary fluid processors.
● Connection Types: Compression Tube x SAE Thread / BSPP Thread
● Thread Options:
– SAE (e.g. 7/16-20, 9/16-18, 3/4-16, 7/8-14, 1-1/16-12)
– BSPP (British Standard Parallel Pipe)
● Sizes Available: 1/4" to 3/4" Tube OD
● Material: 316 Stainless Steel (corrosion-resistant alloys)
● Applications:
– Hydrogen fueling skids
– Clean in place instrumentation
– Sanitary stainless steel fittings
– Gas distribution panels
– Precise fluid control under pressure
Built to outperform in harsh, high-vibration environments, SPME elbows are fully factory tested and compatible with Swagelok-style compression systems. Each model ensures a secure seal even after multiple installations, without compromising alignment or tube integrity.
| Angle | 90º |
|---|---|
| Inch/Metric | Inch |
| Superlok Part Type | Positionable Male Elbows |
SPME Positionable 90 Degree Male Elbows SPME 4-2G
SPME Positionable 90 Degree Male Elbows SPME 4-4G
SPME Positionable 90 Degree Male Elbows SPME 4-4U
SPME Positionable 90 Degree Male Elbows SPME 6-8U
SPME Positionable 90 Degree Male Elbows SPME 8-4G
SPME Positionable 90 Degree Male Elbows SPME 8-8U
SPME Positionable 90 Degree Male Elbows SPME 10-10U
SPME Positionable 90 Degree Male Elbows SPME 12-12U
SPME Positionable 90 Degree Male Elbows SPME 16-16U
