SUNV2-S-6
$192.72

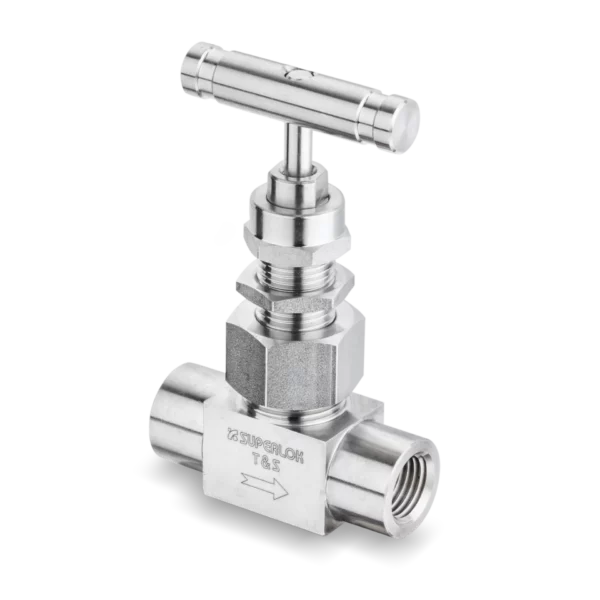

SUNV 3/8 in. Outside Diameter, Polytetrafluoroethylene (PTFE) Packing, 6000 psi Pressure Rating Union Bonnet Needle Valve
Stainless Steel Needle Valve – 3/8" Tube OD | Union Bonnet | PTFE Packing | 6000 PSI
The SUNV2-S-6 is a union bonnet needle valve with a 3/8" tube outside diameter and a 6000 psi pressure rating, built for precise fluid control in high-performance pressure systems. Featuring PTFE packing, this valve offers leak-free sealing, chemical resistance, and smooth, low-torque operation. Ideal for systems requiring non-rotating stem tips and minimal fugitive emissions.
● Body Material: 316 Stainless Steel, Alloy 400
● Cv Coefficient: 0.86
● Packing: PTFE (Polytetrafluoroethylene)
● Working Pressure: 6000 PSIG
● Applications: Instrumentation systems, sanitary fluid processors, analyzer panels, clean gas flow control

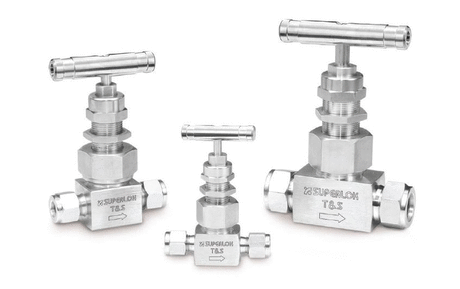

The SUNV Series is designed for lab, field, and OEM use, with optional stem configurations and both straight and angle flow patterns. This needle valve integrates cleanly with Swagelok-style instrumentation fittings and supports use in sanitary stainless steel setups, clean-in-place (CIP) designs, and corrosion-prone environments.
Engineered for control, durability, and precision, the SUNV2-S-6 is your go-to for rugged reliability with smooth metering.
| Cv Coefficient | 0.86 |
|---|---|
| End Size | 44263in |
| End Size 2 | 44263in |
| Inch/Metric | Inch |
| Orifice Diameter | 6mm |
| Temperature Rating with Graphite Packing | -53 to 648ºC, -65 to 1200ºF |
| Temperature Rating with Polychlorotrifluoroethylene (PCTFE) Stem Tip | -53 to 93ºC, -65 to 200ºF |
| Temperature Rating with Polyether Ether Ketone (PEEK) Packing | -53 to 315ºC, -65 to 600ºF |
| Temperature Rating with Polytetrafluoroethylene (PTFE) Packing | -54 to 232ºC, 65 to 450ºF |

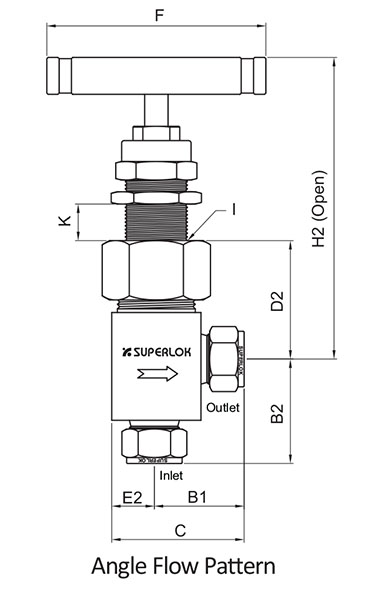

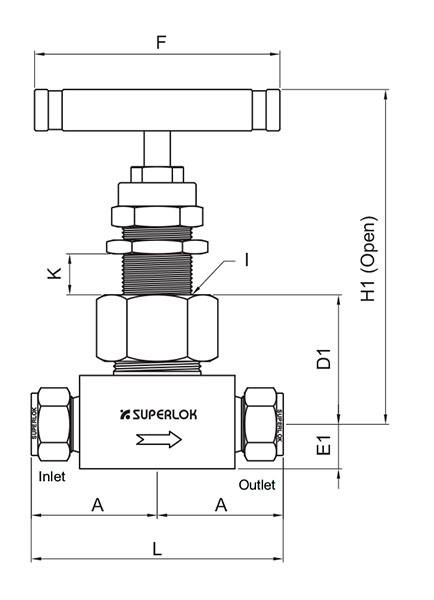

| Dimension A | 36.5mm |
|---|---|
| Dimension B1 | 32.5mm |
| Dimension B2 | 42.9mm |
| Dimension C | 45.3mm |
| Dimension D1 | 34.1mm |
| Dimension D2 | 31.0mm |
| Dimension E1 | 12.7mm |
| Dimension E2 | 12.7mm |
| Dimension F | 64.0mm |
| Dimension H1 | 93.7mm |
| Dimension H2 | 90.5mm |
| Dimension I | 15.9mm |
| Dimension L | 73.0mm |
| Swagelok | 6NBS6 |
|---|
